airMAX WISP Customer Wi-Fi Solution
Sorry, this product is no longer available, and replaced by the Ubiquiti airCube.

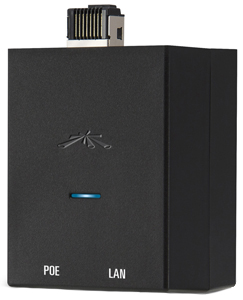

The airGateway™ is an airMAX WISP customer Wi-Fi solution. It simultaneously connects indoor client devices and powers the outdoor airMAX CPE (Customer Premises Equipment).
The airGateway is available in two different models: the airGateway, which is the standard model with an internal antenna, and the airGateway-LR, which includes an external antenna for extended range.

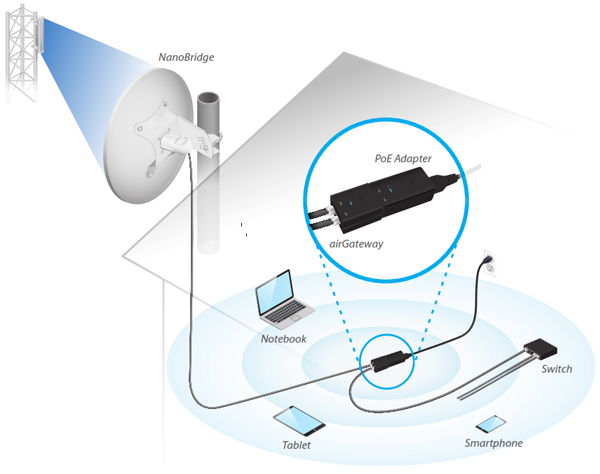

In the diagram on the right, the airGateway supports multiple functions:
- Acts as an indoor wireless device connecting multiple wireless clients
- Connects to a switch to support wired clients
- Powers the airMAX CPE on the roof
Typical airGateway Application
The airGateway is deployed indoors to connect client devices.
The airGateway can operate in any of these network modes to meet the needs of your network:
- SOHO (Small Office/Home Office) Router
The airGateway supports these wireless modes to fulfill your wireless requirements:
- Access Point mode to function as the center of your wireless network
- Station mode to extend your wireless network
Such versatile functionality makes the airGateway extremely convenient and economical to deploy.
The airGateway is compatible with Ubiquiti PoE Adapters featuring 24V, 0.5A or 15V, 0.3A.
The airGateway provides an additional ±24kV of Ethernet isolation for built-in protection that lessens the risk of ESD or surge damage to your devices.

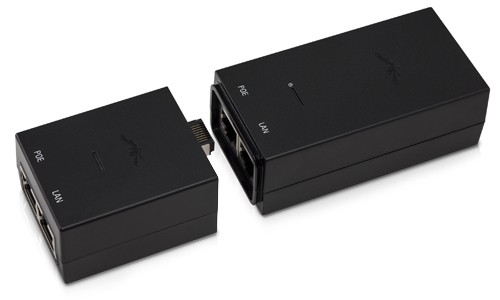

Ubiquiti PoE Adapter Compatibility
The airGateway plugs into a Ubiquiti PoE Adapter. Compatible with POE-15-12W & POE-24-12W.
Convenient Customer Wi-Fi
The airGateway™ seamlessly bridges airMAX connectivity to Wi-Fi for client devices at the customer's location.
Use the airOS Configuration Interface to provision the airGateway™, monitor its configuration and restrict/enable customer management.

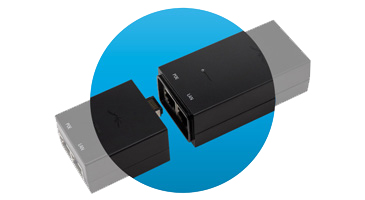

Sleek Mechanical Design
The airGateway™ features an innovative design that interlocks with an existing airMAX PoE Adapter.
Designed for performance and reliability, the airGateway™ delivers Wi-Fi connectivity with 99.9% uptime.
Installing the airGateway™ for Indoor Wi-Fi

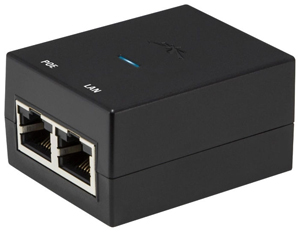

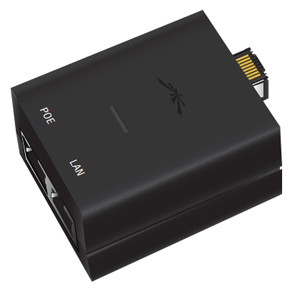

Left Angle View

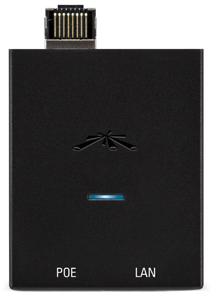

Top Angle View

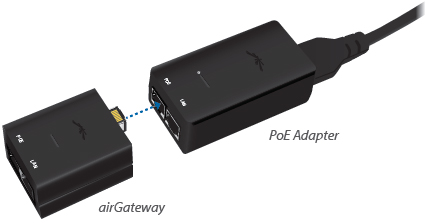

Ubiquiti PoE Adapter Compatibility
Model Number: POE-15-12W and POE-24-12W
The airGateway plugs into a Ubiquiti PoE Adapter.
|Processor Specs||Atheros MIPS 24KC, 400 MHz|
|Memory||32 MB DDR1|
|Physical / Electrical / Environmental|
|Dimensions||54 x 44 x 30 mm|
|Networking Interface||(2) 10/100 Ethernet Ports|
|Connector||(1) Male RJ-45 Connector|

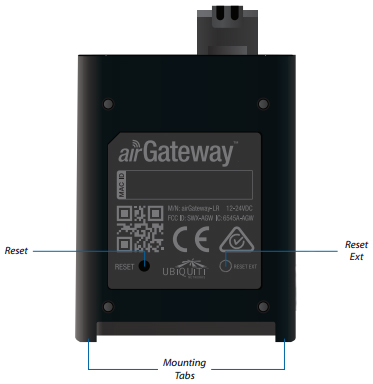

|Buttons||Reset, Reset Ext|
|Antenna||Internal 2.4 GHz Antenna|
|Wi-Fi Standards||802.11 b/g/n|
|Operating Frequency||2.412 GHz to 2.484 GHz|
|Maximum Power Consumption||4 W|
|Maximum TX Power||18 dBm|
|Power Method||PoE Adapter, 15 / 18 / 24VDC (Not Included)|
|ESD/EMP Protection||24kV RJ-45 Interface|
|Operating Temperature||-10 to 60° C|
|Operating Humidity||5 to 95% Noncondensing|
|Supported Data Rates|
|802.11n||6.5 Mbps to 150 Mbps (MCS0 - MCS7, HT 20/40)|
|802.11b||1, 2, 5.5, 11 Mbps|
|802.11g||6, 9, 12, 18, 24, 36, 48, 54 Mbps|
|Regulatory / Compliance Information|
|Wireless Approvals||FCC, IC, CE|
Exceptionally Intuitive Interface
airOS is an intuitive, versatile, highly developed Ubiquiti firmware technology. It is exceptionally intuitive and was designed to require no training to operate. Behind the user interface is a powerful firmware architecture, which enables high-performance networking.
After installing the airGateway, configure it via Wi-Fi from a computer, tablet, smartphone, or other wireless client device. During the initial setup, the airGateway Setup Wizard will appear and guide you through the basic configuration.
For advanced configuration, access the airOS Configuration Interface to manage the following:
- Wireless settings
- Network settings
- System management services and settings
Intuitive User Interface
The interface is designed for efficient setup and control:
- Access via a web browser
- Web-based management pages for convenient configuration
- Multi-language support
airOS supports a variety of networking features, including:
- Protocol support
- Channel shifting and spectral width adjustment
- ACK auto-timing
- Address Allocation Protocol (AAP) technology
- Network administration and monitoring tools
System Management Services
Manage these services from airOS:
- Ping Watchdog
- Servers (web, SSH, Telnet)
- System log
- Device discovery

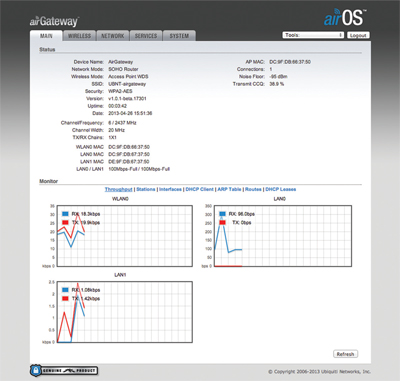

View link status information, current settings, and network traffic statistics.

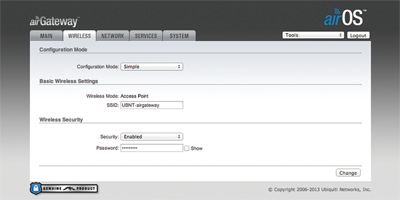

Configure the wireless settings, including the channel and frequency in Advanced Configuration Mode.

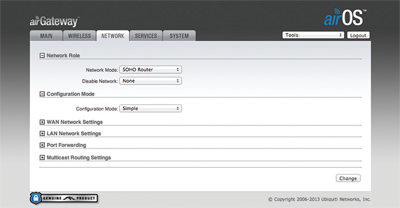

Configure the network operating mode and IP settings.
Download the Ubiquiti airGateway Datasheet (PDF).
