Ubiquiti UniFi Cloud Key Gen 2 Plus
Hybrid Cloud Key Technology with Integrated Application Server
Get a Quote!
- Fully Integrated, Stand-Alone UniFi® Controller with 1TB HDD

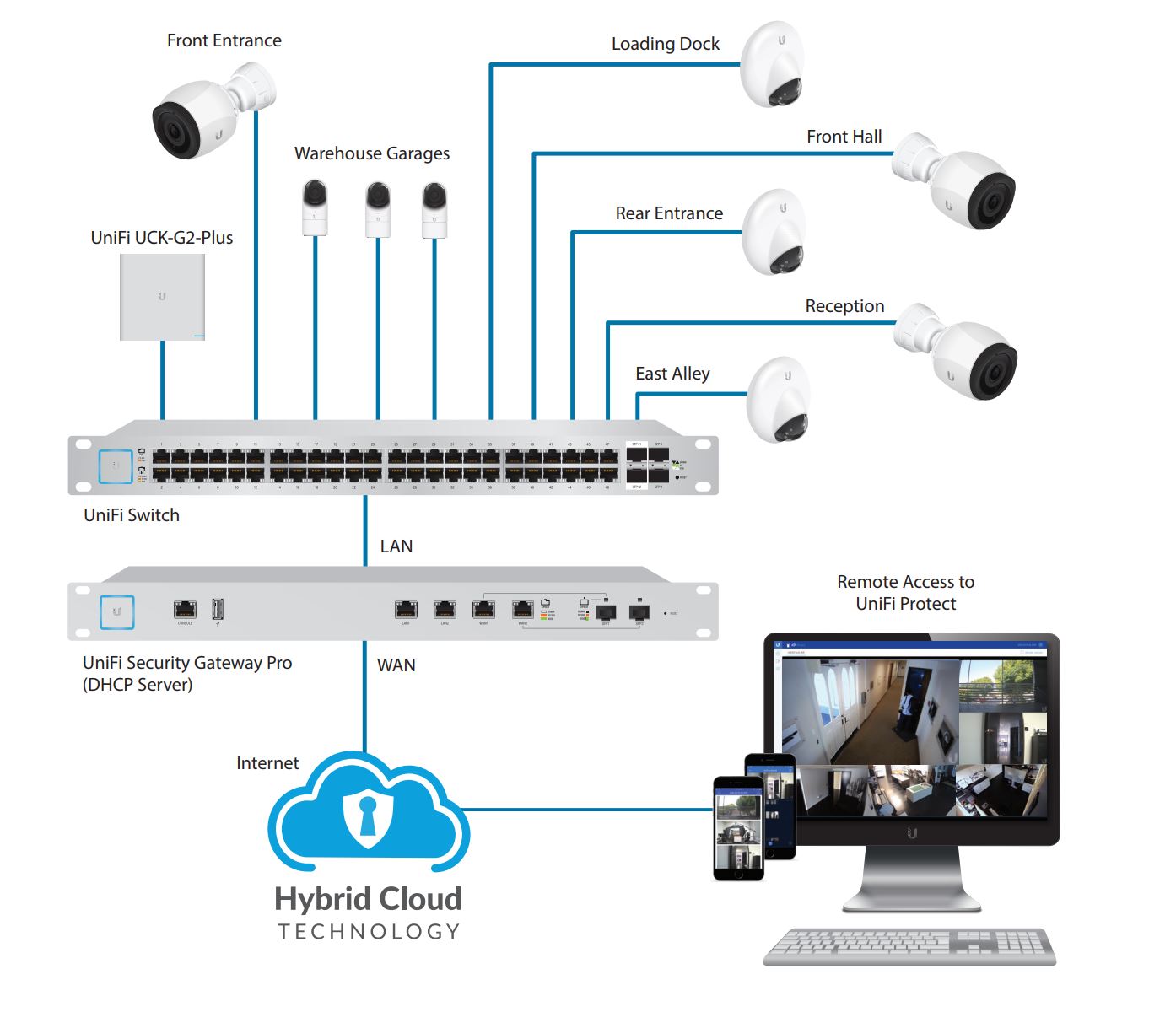

- Multi-Site Network Management and IP Video Surveillance
- Remote, Private Cloud Access to UniFi SDN and UniFi Protect
UniFi Controller with Hybrid Cloud
The UniFi Cloud Key Gen2 Plus is an integrated hardware controller and self-contained application server designed to monitor and manage your UniFi network devices and camera surveillance system. It features an eight-core processor with 3 GB RAM, a 1 TB SATA HDD for video storage, and 32 GB eMMC flash storage, and utilizes the latest version of the UniFi Controller with hybrid cloud technology
The UniFi Cloud Key Gen2 Plus is fully capable of configuring and managing dozens of UniFi devices on your network, and offers an ultra-low energy PoE replacement for a dedicated server or computer, with virtually no digital footprint.
Hybrid Cloud Technology
The Ubiquiti® hybrid cloud configuration provides a secure, private SSO (Single Sign-On) to access all of your UniFi deployments from anywhere in the world. With the Ubiquiti hybrid cloud, a third-party hosted cloud service is not required, so all of your personal data and network information remains local and secure–the way it should be.
Incredible, Agile Scalability
Add, provision, configure, monitor, and manage all of your UniFi devices, whether in one or hundreds of private networks–all from a centralized control panel.
Easily accessible through one of our downloadable apps or a standard web browser (Chrome recommended), the UniFi Cloud Key Gen2 is a powerful solution for managing your UniFi networks across the campus or across the globe.
A UniFi Cloud Key Gen2 installed at each deployment site provides an always-on, private UniFi cloud service. Every site is accessible through its assigned secure SSO. Each Cloud Key Gen2 is independent with its own network monitoring, configuration, maps, statistics, and admin accounts.
Improved User Experience
Redesigned to be more intuitive and easier to navigate, the new UI raises the bar for enterprise network management efficiency. Important network details are logically organized for a simplified, yet powerful, interface.
A comprehensive overview of your network health is readily available in the new dashboard. Monitor your network’s vitals and make on‑the‑fly adjustments as needed.
Use the configurable reporting and analytics to monitor large user groups and expedite troubleshooting.
The UniFi Network Controller can manage flexible configurations of large deployments. Create multiple LAN and WLAN groups and assign them to the respective UniFi devices.
UniFi provides a visual representation of your network’s status and delivers basic information about each network segment.
UniFi Mobile App
The downloadable app provides free remote cloud access to your UniFi Controller. It also allows you to analyze and manage the health and traffic of your UniFi network from anywhere in the world using your single-signon Ubiquiti account.
The Statistics tab provides a visual representation of the network clients and network traffic carried by your managed UniFi Switches and APs.

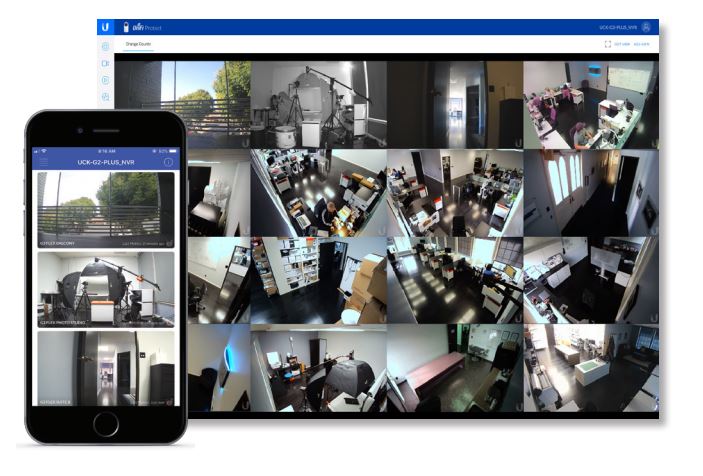

View up to 20 live camera feeds in a single window. With basic and advanced template options available, choose the live view template that’s right for you.

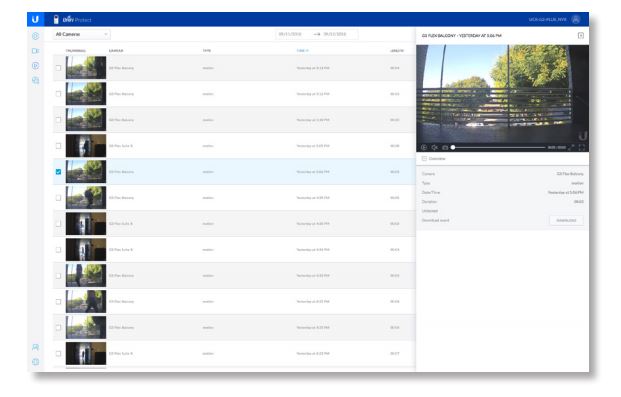

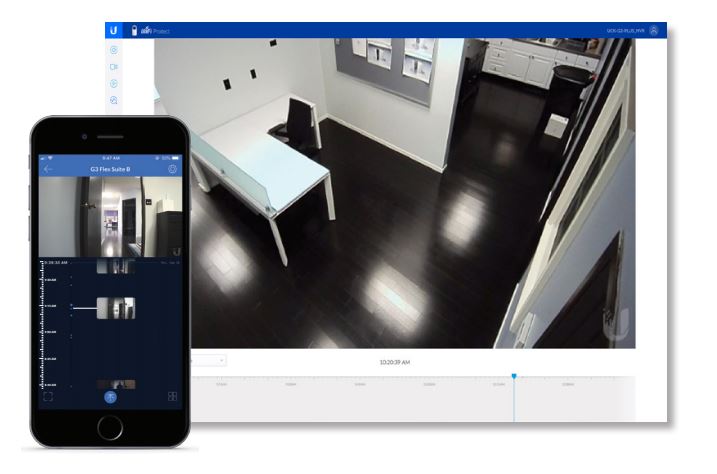

The new Time Lapse feature allows you to scroll through video events and recordings quickly and efficiently. Now you can sift through hundreds of hours of video in just minutes.
Video recordings are stored privately on the Cloud Key Gen2 Plus. With a built-in 1 TB HDD, you can retain hundreds of recording hours without third-party storage or online digital footprints.
|UniFi Cloud Key Gen 2 Specification|
|Dimensions||131.16 x 27.10 x 134.20 mm (5.16 x 1.07 x 5.28")|
|Weight||582 g (1.28 lb)|
|Management Interface||UniFi Management Portal; UniFi SDN; UniFi Protect|
|Hard Drive Capacity||1 TB 2.5" SATA HDD (user-upgradeable)|
|Device Capacity||Up to 20 UniFi Cameras
Up to 15 UniFi Cameras and 50 UniFi Devices
|Processor||APQ8053 8 Core with 3 GB RAM|
|Management Interface||UniFi App; UniFi Network Interface|
|Networking Interface||(1) 10/100/1000 Ethernet Port|
|Buttons||(1) Power; (1) Reset|
|LEDs||(1) Power, White/Blue|
|Power Method||Standard 802.3af PoE; Quick Charge 2.0/3.0 Power Adapter (9VDC, 2A)|
|Supported Voltage Range||Standard 802.3af PoE or 9VDC, 2A|
|Max. Power Consumption||12.95W (PoE); USB-C Power|
|Certifications||CE, FCC, IC|
|Operating Temperature||0 to 35° C (32 to 104° F)|
|Operating Humidity||20 to 80% Noncondensing|
Download the Ubiquiti UniFi Cloud Key Gen 2 Plus Datasheet (PDF).
- Pricing and product availability subject to change without notice.
