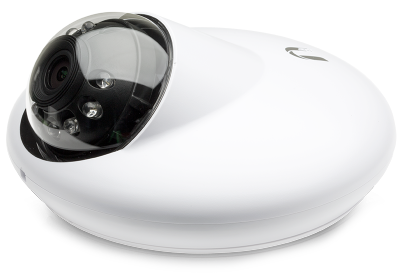

Ubiquiti UniFi Video Camera G3 Dome
Wide-Angle 1080p Dome IP Camera with Infrared


Ubiquiti UniFi Video Camera G3 Dome

Sorry, this product is no longer available, please contact us for a replacement.


Click here to jump to more pricing!

Overview:UniFi Video Camera G3 Dome

The UniFi Video Camera G3 Dome represents the next generation of the UniFi Video surveillance management system. The UniFi Video Camera G3 Dome features a wide-angle lens and 1080p video performance for expanded surveillance coverage. The new surface-mount design provides options for wall or ceiling installations. The infrared LEDs and an automatic IR cut filter provide day and night monitoring. Available in a single-pack or 5-pack bundle.

  • 1080p Full HD, 30 FPS
  • EFL 2.8 mm, ƒ/2.0
  • Wide-Angle Lens
  • 802.3af PoE or 24V Passive PoE
  • Built-in Microphone
  • Wall or Ceiling Mount

High-Definition IP Surveillance Cameras

The UniFi Video Cameras G3 and G3 Dome represent the next generation of cameras designed for use in the UniFi Video surveillance management system. These cameras offer 1080p Full HD resolution for day or night use and are integrated with the UniFi Video software for powerful and flexible, integrated IP video management.

Unified Video Surveillance ManagementUniFi Video

Easily scale IP surveillance camera networks to hundreds* of plug and play, high-performance devices across multiple locations. Manage and control your system with intuitive software packed with powerful features and analytic capabilities — all without licensing fees or support costs.

*UniFi NVR supports up to 50 cameras. Combine UniFi Video software with alternate system configurations to support 100+ cameras.

Features:

Powerful Software Management

Use the UniFi Video mobile app for easy camera management and live streaming from an iOS or Android-based smartphone or tablet. The UniFi Video mobile app is now available in the App Store for iOS and Google Play Store for Android.

Powerful Software Management

Sleek, Integrated Design

The versatile UniFi Video Camera Dome integrates into any ceiling or wall surface. It is designed for use indoors or outdoors under an overhang.

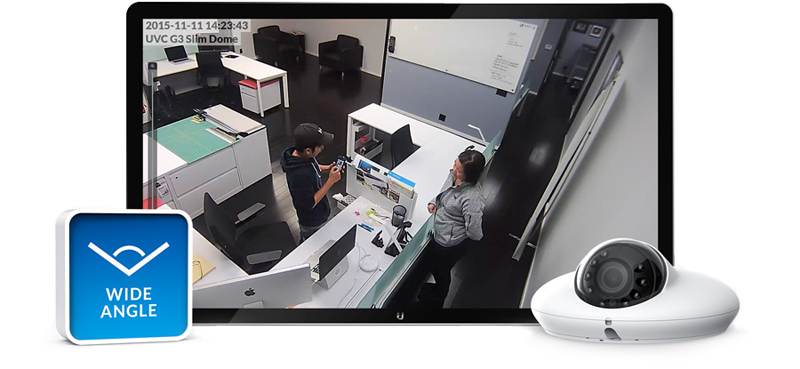

HD Image Quality

Featuring a wide-angle lens for a superior field of view, the UniFi Video Camera G3 Dome provides 1080p HD resolution at 30 FPS.

HD Image Quality

Unlimited Free Use + No Third-Party Server Streaming + Remote Accessibility Anywhere

Hybrid Cloud Technology combines the best of local and cloud management: secure, local storage and convenient remote access with streaming privacy – no licensing or maintenance fees.

Hybrid Cloud Technology

Unlimited Free Use + No Third-Party Server Streaming + Remote Accessibility Anywhere

Product Views:


Ubiquiti UniFi Video Camera G3 Dome

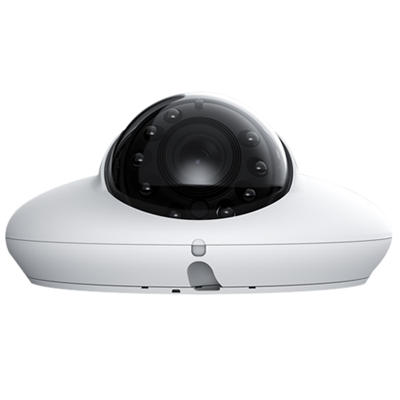

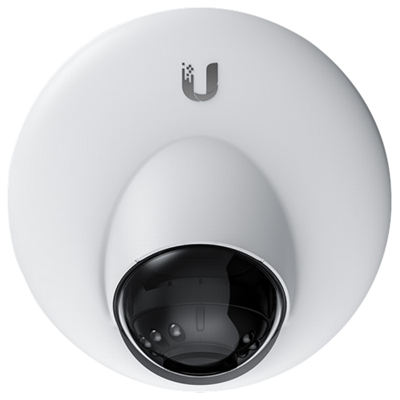

Front View
Front View

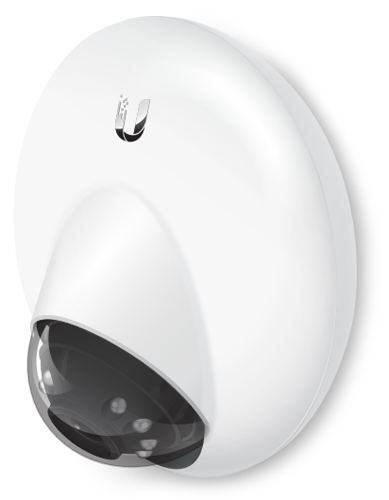

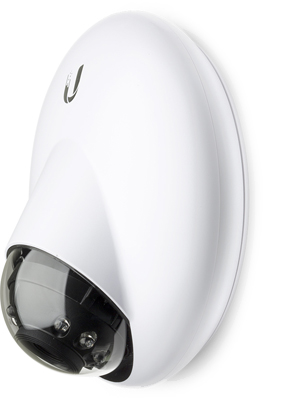

Left Angle View
Left Angle View

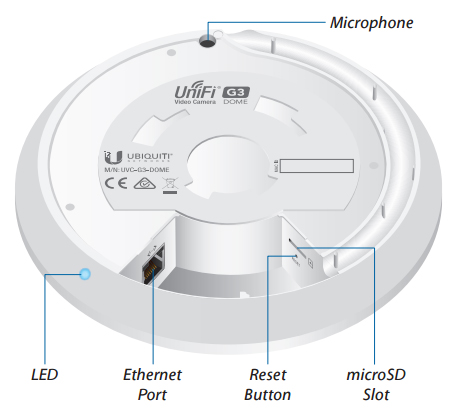

Bottom View
Bottom View

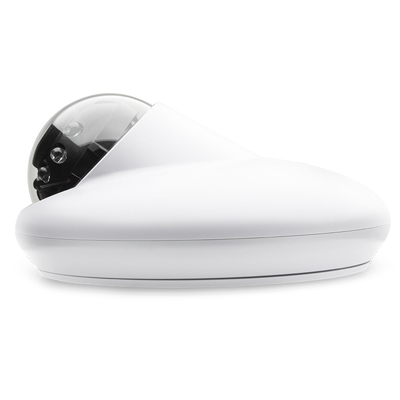

Side View
Side View

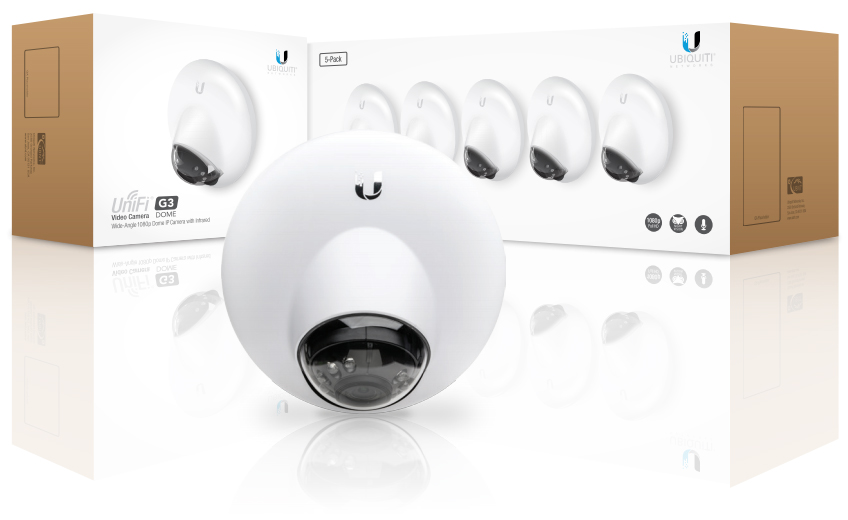

Package

Deployment:

Faster deployment, more powerful manageability

UniFi Video deployment is faster than ever. The airVision software now autodiscovers, configures and manages airCam devices centrally. The UniFi NVR is pre-installed with UniFi Video software and comes with a configuration wizard to make deployment even easier. UniFi Video now has powerful new management features like role based security and rule based storage management.

UniFi Video System Example

Specifications:

UVC-G3-DOME Specifications

UVC-G3-DOME Specifications
Dimensions Ø 132 x 60 mm (Ø 5.20 x 2.36")
Weight 260 g (9.17 oz)
Networking Interface (1) 10/100 Ethernet Port
Sensor 1/3" 4-Megapixel HDR Sensor
Lens EFL 2.8 mm, F2.0
Night Mode IR LEDs with Mechanical IR Cut Filter
Microphone Yes
Buttons Factory Reset Button
Power Method 802.3af PoE or 24V Passive PoE
Power Supply 802.3af PoE Switch or 24V, 0.5A PoE Adapter (Included with Single-Pack)
Maximum Power Consumption 4 Watts
Mounting Wall/Ceiling
Certifications CE, FCC, IC
Operating Temperature -30 to 70° C (-22 to 158° F)
Operating Humidity 20 - 90% Noncondensing
Video
Video Compression H.264
Resolution 1080p Full HD (1920x1080)
Maximum Frame Rate 30 FPS
Image Setting Brightness, Contrast, Sharpness, Saturation, Noise Reduction, 50/60 Hz
General
Processor Ambarella S2L
Memory 512 MB DDR3L
Viewing Angle Before Lens Correction: 100.4° (H), 59.1° (V), 117.3° (D)
After Lens Correction: 87.8° (H), 55.4° (V), 96.4° (D)
Supported UniFi Video Version UniFi Video 3.2 (or Newer)
UniFi Video System Requirements 64-bit Microsoft Windows 10/8/7, Ubuntu 12.04 or 14.04, or Debian 7.0 System with an Intel or Compatible 1.86 GHz (or Above) Processor and a Minimum of 2 GB RAM.

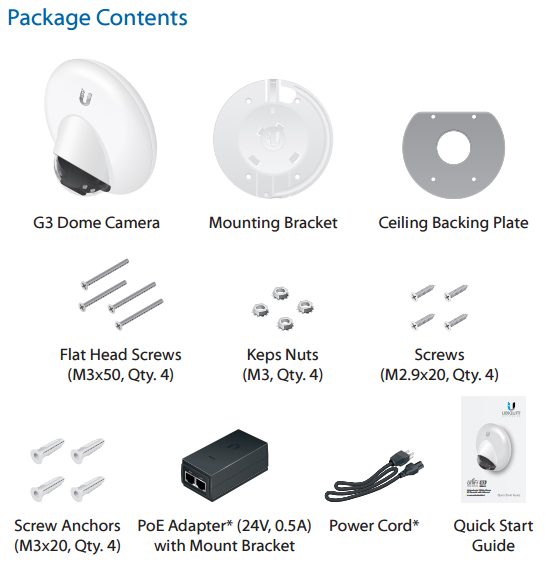

Package Contents

Software:

Powered by UniFi Video

UniFi Video
Quickly deploy, easily monitor and manage your cameras with a powerful, intuitive user interface.

The UniFi Video software is pre-installed on the UniFi NVR for quick and easy deployment. The UniFi Video software can also be downloaded and installed on a Windows/Linux system.

UniFi Camera VideoTabletHD Video & Live View

Get high-quality / low-latency video with up to 1080p* support. View live feeds in a single or customizable, multi-camera format.

Multi-Site & Multi-User Management

Expand across different networks with any number of devices and manage them under a single user interface. UniFi®  Video allows you to grant access rights and restrictions to different users or user groups for your cameras and camera functionality.

* 1080p / 720p support depends on the model of camera installed.

UniFi Camera UIExample

Feature-Packed User Interface

UniFi Video’s user interface was designed to be easy to use yet packed with advanced features such as detailed statistical reporting, advanced analytics and customizable event recordings.

Analytics & Statistics
Analytics & Statistics

Quickly assess important camera activity and NVR performance with easy-to-read data visualizations.
Recordings
Recordings

UniFi Video gives you a variety of options and settings to customize what your cameras record.
Zone Security
Zone Security

Zones can be defined to detect motion in important areas while ignoring less important areas.

Features

Feature-Packed User Interface
Accessible from a web browser, the UniFi Video interface was designed to be easy to use yet packed with advanced features. The UniFi Video interface is incredibly intuitive and loaded with powerful features such as detailed statistical reporting, multiple views, versatile camera settings, advanced analytics, and customizable event recordings.

Plug and Play Installation
Automatic camera detection in the UniFi Video software makes it easy to install and deploy cameras. UniFi Video Camera settings are integrated into the UniFi Video software. Configure camera settings, reboot the camera, or upgrade the firmware from the UniFI Video interface.

Camera-Based Motion Detection
The UniFi Video cameras handle motion detection instead of the server, relieving the workload on the server and ensuring that compression and noise won't affect motion detection.

Additional Live Views
Playlists can be created with a configurable live camera feed rotation. Define the cameras you want included in the playlist and how long you want them to appear on the screen before moving on to the next live feed.

Disk Management Features
UniFi Video has automatic recording management to free up disk space. User-definable disk space and date-based auto purge allow users to keep a set amount of free disk space or automatically delete recordings after a certain number of days. Another storage feature is the ability to map external USB or network storage drives.

Cost-Effective Solution
Shattering conventional industry thinking, Ubiquiti offers UniFi Video's powerful IP surveillance software at no additional cost. No huge upfront costs, no monthly subscription fees.

Mobile App
UniFi Video may be accessed from iOS and Android using the UniFi Video mobile app.

Mobile App

Mobile Support
The UniFi Video web interface is accessible on iOS and Android tablets and phones.

Mobile App

Event Recordings
Event Recordings
UniFi Video software provides a variety of options and settings to customize what your cameras record.

Maps
Maps
Upload a map of your location(s) or use Google Maps to represent the areas where your cameras are located.

Powerful Analytic Capabilities
Powerful Analytic Capabilities
Customize your own motion detection zones. You can place several zones and set their alarm sensitivity levels as high or low as the situation demands.

UniFi Video Software Specifications
Software Browser-Based Interface, Tablets, and Smartphones Supported
System Setup Plug-and-Play Installation, Automatic Camera Detection
NVR Camera Support Recommended for up to 20 UniFi Video Cameras. Supports up to 50
Supported Devices Operating Systems: Windows, Apple, and Linux
Browsers: Chrome, Internet Explorer 10 (or above), Firefox, and Safari
Smartphones: iPhone and Android
Media Format MP4 (H.264/AAC)
Scheduling Day/Time/Camera
Scheduled Video Recording/Motion Detection/Email Alerts
Views Custom Views of Multiple Cameras
Full Screen Capability

Miscellaneous:


TOUGHCable BoxTOUGHCable
Protect your networks from the most brutal environments with Ubiquiti's industrialgrade shielded ethernet cable, TOUGHCable.

  • Increase Performance - Dramatically improve your ethernet link states, speeds, and overall performance with Ubiquiti TOUGHCables.
  • Extreme Weatherproof - TOUGHCables have been built to perform even in the harshest weather and environments.
  • ESD Damage Protection - Protect your networks from devastating electrostatic discharge (ESD) attacks.
  • Extended Cable Support - TOUGHCables have been developed to have increased power handling performance for extended cable run lengths.

Bulletproof your networks

TOUGHCable is currently available in two versions: PRO Shielding Protection and CARRIER Shielding Protection.

TOUGHCable PRO is a Category 5e, outdoor, carrier-class shielded cable with an integrated ESD drain wire.

TOUGHCable PRO

TOUGHCable CARRIER is a Category 6, outdoor, carrier-class shielded cable that features an integrated ESD drain wire, anti-crosstalk divider, and secondary shielding. It is rated to provide optimal performance on Gigabit Ethernet networks.

TOUGHCable CARRIER

Additional Information:

  • 24 AWG copper conductor pairs
  • 26 AWG integrated ESD drain wire to prevent ESD attacks and damage
  • PE outdoor-rated, weatherproof jacket
  • Multi-layered shielding
  • Available in lengths of 1000 ft (304.8 m)

TOUGHCable Connectors

Specifically designed for use with Ubiquiti TOUGHCable, TOUGHCable Connectors protect against ESD attacks and Ethernet hardware damage, while allowing rapid field deployment without soldering. The standard TOUGHCable Connectors are available in a box of 100, while the TC-GND versions include ground wires and are available in a box of 20.

ESD attacks are the leading cause for device failures. The diagram below illustrates the areas vulnerable to ESD attacks in a network. By using a grounded Ubiquiti Power over Ethernet (PoE) Adapter along with Ubiquiti TOUGHCable and TOUGHCable Connectors, you can effectively protect against ESD attacks.
TOUGHCable Connectors

TOUGHSwitch PoE with ScreenshotsToughtSwitch PoE
Advanced Gigabit PoE Managed Switch

Introducing the Advanced Power over Ethernet Controllers, TOUGHSwitch™ PoE from Ubiquiti Networks. TOUGHSwitch PoE delivers reliable passive PoE and fast 10/100/1000 Mbps connectivity to attached Ubiquiti devices and other devices that support passive PoE.

To connect your PoE devices, simply enable PoE in the easy-to-use TOUGHSwitch Confi guration Interface. Each port can be individually confi gured to provide PoE, so both PoE and non-PoE devices can be connected.

Simplify Your Deployment

TOUGHSwitch PoE allows network architects to design cleaner, less cluttered deployments. For example, integrating one TOUGHSwitch PoE PRO can eliminate the need for the following:

  • 8 PoE adapters
  • 8 power cords
  • 8 power outlets
  • 8 Ethernet patch cables

TOUGHSwitch PoE deployments increase efficiency and greatly reduce potential failure points - resulting in faster installations and less maintenance and troubleshooting.

Deployment without TOUGHSwitch
TOUGHSwitch 8-Port PoE PRO Deployment

Documentation:

Download the Ubiquiti UniFi Video G3 Datasheet (PDF).
