Ubiquiti AirMAX 2GHz Titanium Sector
Advanced RF Isolation Variable Beamwidth Antenna
Our Price: $269.00
Providing adjustable beamwidth from 60 to 120 degrees combined with great isolation performance, the new titanium sectors provide additional scalability and noise immunity performance in hi-noise environments and co-location deployments.
Advanced Carrier-Class PtMP Basestation Antenna
Introducing the airMAX Titanium Sector, which continues the evolution of Ubiquiti's best-in-class sector antennas. Advanced RF isolation and variable beamwidth configuration put the Titanium Sector at the forefront of sector antenna technology.
Reduced Co-Location Interference
Drawing on Ubiquiti's depth of electrical and mechanical engineering expertise, Ubiquiti has developed the airMAX Titanium Sector to be highly resistant to noise interference in co-location deployments.

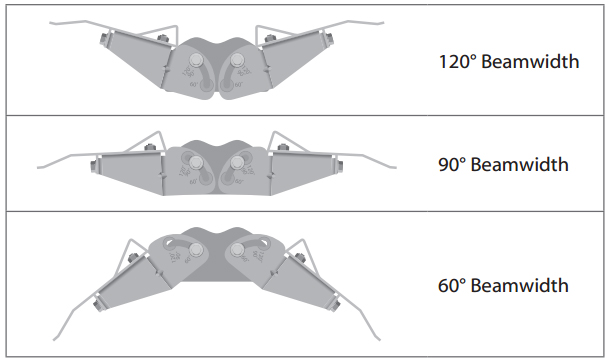

Adjustable Beamwidth Configuration
Having adjustable beamwidth options enhances scalability and streamlines inventory. The airMAX Titanium Sector may be custom configured for any deployment requiring a 60˚, 90˚, or 120˚ sector.
Antenna gain increases respectively with each decrease in beamwidth.

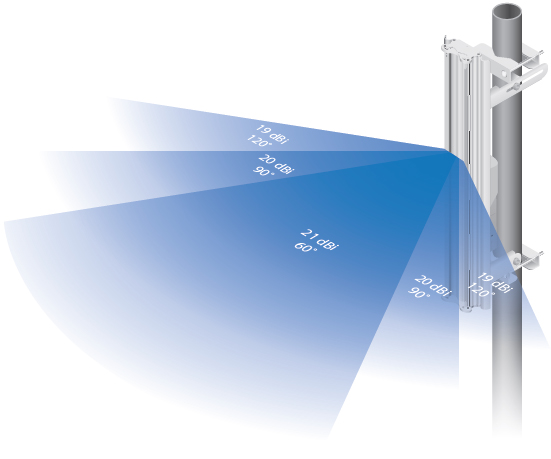

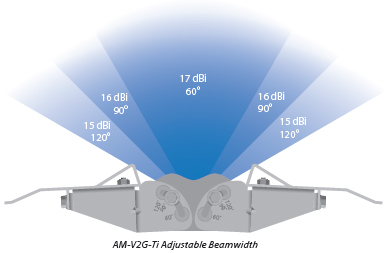

- AM-V2G-Ti: 17 dBi (60°), 16 dBi (90°), 15 dBi (120°)
- AM-V5G-Ti: 21 dBi (60°), 20 dBi (90°), 16 dBi (120°)
- AM-M-V5G-Ti: 17 dBi (60°), 16 dBi (90°), 15 dBi (120°)
The airMAX Titanium Sector was specifically engineered for optimal performance when paired with a Rocket™M Titanium.
- 20% increase in performance with PtMP networks
- Up to 90% performance improvement in a co-location environment
- Increased durability in harsh weather

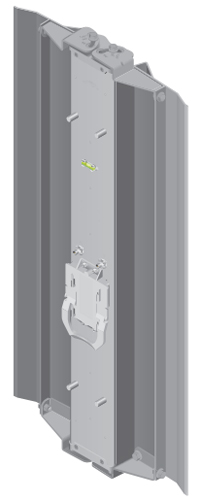

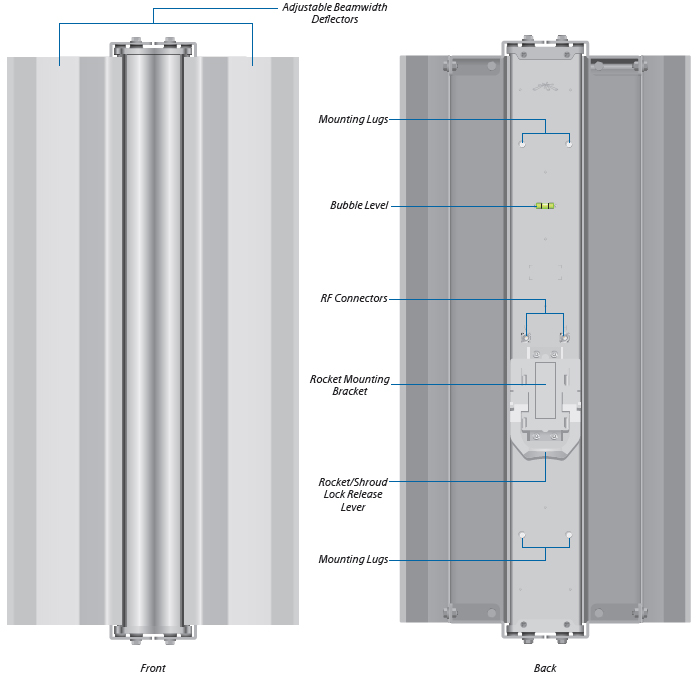

Easily Mount and Protect Your Rocket
The Titanium Sector has an integrated Rocket mount that allows you to mount the Rocket without the use of any tools. The custom-designed Protective Shroud helps to shield your Rocket from the elements.
Utilize airMAX Technology*
Unlike the standard WiFi protocol, Ubiquiti's Time Division Multiple Access (TDMA) airMAX protocol allows each client to send and receive data using pre-designated time slots scheduled by an intelligent AP controller.
This "time slot" method eliminates hidden node collisions and maximizes air time efficiency. It provides many magnitudes of performance improvements in latency, throughput, and scalability compared to all other outdoor systems in its class.
- Intelligent QoS - Priority is given to voice/video seamless streaming.
- Scalability - High capacity and scalability.
- Long Distance - Capable of high-speed, carrier-class links.
Up to 100 airMAX stations can be connected to an airMAX Sector; four airMAX
stations are shown to illustrate the general concept
*When Sectors is paired with Rocket M
Breakthrough Design and Performance
The innovative airMAX Sector Antennas feature carrier-class construction and 2x2, dual-polarity performance.
Highly resistant to noise interference, the airMAX Sector Antennas provide superior gain and beam performance for high-capacity, multipoint networks.
Plug and Play Integration
The versatile airMAX Titanium Sector models feature advanced RF isolation and adjustable beamwidth options: 60°, 90° or 120°.
airMAX Antennas are designed with robust mechanical design for outdoor application use.
Plug and Play Integration
Every airMAX Antenna has a built-in Rocket™ mount, so no tools are needed to install the Rocket BaseStation.

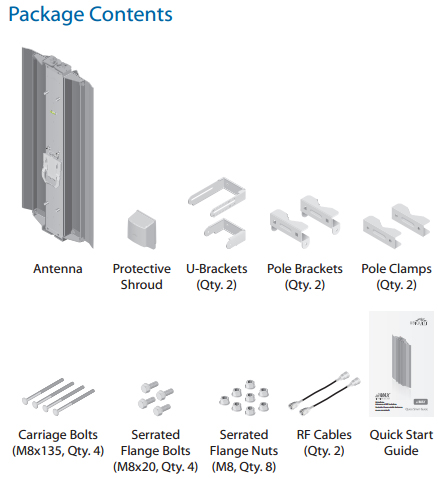

Installing the airMAX Titanium Sector
With Rocket M2 Titanium radios (Rocket M2 Titanium sold separately)
|AirMAX 2GHz Titanium Sector Specification|
|Dimensions||773 x 372 x 120 mm|
|Weight||6.40 kg (with Brackets)|
|Frequency Range||2.3 - 2.6 GHz|
|Beamwidth Angles||60°/ 90°/ 120°|
|Gain (Beamwidth Dependent)||17 dBi @ 60°
16 dBi @ 90°
15 dBi @ 120°
|Wind Survivability||125 mph|
|Wind Loading||92 lbf @ 100 mph|
|Cross-Pol Isolation||25 dB Typical|
|Front-to-Back Ratio||30 dB Typical|
|RF Connectors||2 RP-SMA Connectors (Weatherproof)|
|Compatible Radios||RocketM2 Titanium
|Mounting||Pole Mount (Kit Included)|
|ETSI Specification||EN 302 326 DN2|
|Certifications||CE, FCC, IC|
