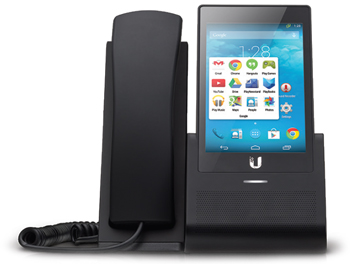

Ubiquiti UniFi VoIP Phone
Enterprise VoIP Phone with 5" Touchscreen


Ubiquiti UniFi VoIP Phone

Sorry, this product is no longer available, please contact us for a replacement.



Overview:UniFi VoIP Phone

The UniFi VoIP Phone is the base model in the UniFi VoIP family and part of the UniFi Enterprise System. The base model includes a 5" touchscreen powered by Android™. Designed to easily integrate into a UniFi network, the UniFi VoIP Phone includes the following features:

  • 5-Inch, High-Definition, Multi-Touch Color Display
  • Powered by Android
  • High-Fidelity Audio

Smartphone Technology for Corporate Environments

UniFi VoIP

The UniFi VoIP Phone is an enterprise desktop smartphone solution with a brilliant, high-definition color display designed for modern communication, organization, and productivity. Built on Android and integrated into Ubiquiti's UniFi Enterprise System, the UniFi VoIP Phone is the next-generation standard for corporate communications.

Download and install your favorite apps, stream media, browse the Internet, and access content created and stored in your Google accounts. Each phone can be uniquely personalized, while all the phones are easily deployed and managed with UniFi software.

Disruptive Pricing, No Fees

The UniFi VoIP Phone provides breakthrough value starting at $149 USD MSRP. The UniFi Controller software is bundled with the UniFi VoIP Phone at no extra charge – no separate software, licensing, or support fee.

Features

Plug and Play Installation
Use a standard Ethernet cable to connect and power the UniFi VoIP Phone with a UniFi Switch (or other 802.3af compliant switch). The UniFi VoiP Phone is designed to integrate with the UniFi Controller and UniFi Security Gateway, so the phone is automatically provisioned for fast deployment.

Powered by Android
The UniFi VoIP Phone is powered by the Android operating system. Access media content, browse the web, and visit the Google Play™ store to download and install your favorite apps.

Elegant Design
The UniFi VoIP Phone features a sleek and elegant industrial design.

5" or 7" High-Definition, Multi-Touch Color Display
Navigate the UniFi VoIP Phone using the touchscreen display.

  UVP UVP-Pro UVP-Executive
Model UVP UVP-Pro UVP-Executive
Display 5" Touchscreen* 5" Touchscreen* 7" Touchscreen*
Camera No Yes Yes
Bluetooth No Yes Yes
Wi-Fi No Yes Yes
Audio Mono Mono Stereo

* Touchscreen measurements are diagonal.

Features:


Smartphone Technology for Corporate Environments

With its full range of Android apps, the UniFi VoIP Phone provides a seamless user experience to enhance work productivity.

front view of UniFi VoIP

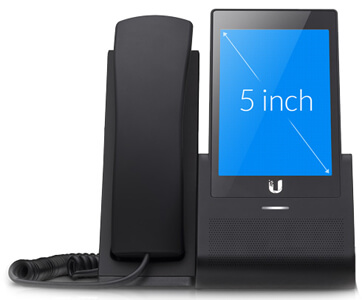

HD Touchscreen

The 5-inch*, high-definition, multi-touch color display is designed for ease of use and quick navigation.

HD Touchscreen

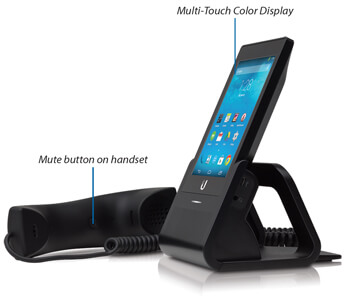

Ergonomic Handset

The handset design features a comfortable, soft-touch grip and a conveniently located Mute button.

Ergonomic Handset

Convenient Bluetooth Support

The PRO model features built-in Bluetooth support for hands-free use with ergonomic wireless headsets.

Convenient Bluetooth Support

High-End Audio

The UniFi VoIP Phone provides excellent sound quality for an exceptional audio calling experience.

High-End Audio


Plug and Play Deployment

The UniFi VoIP Phone includes SIP support and automatic provisioning to create an enterprise-class telephony infrastructure.

Product Views:

UniFi VoIP Phone

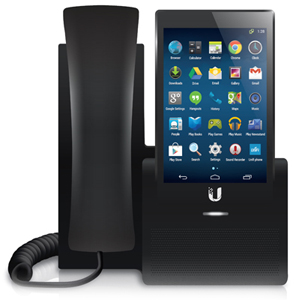

Front View
Front View
Rear Film
Rear Film

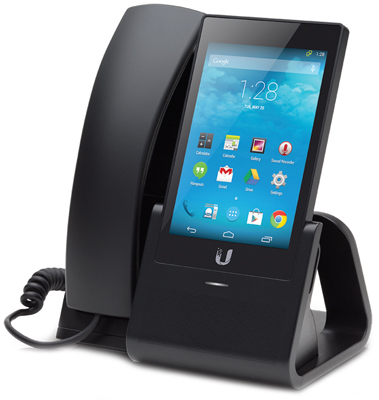

Front Angle View
Front Angle View

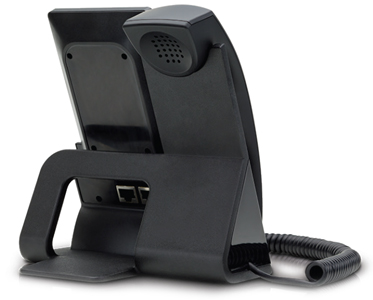

Rear Angle View
Rear Angle View

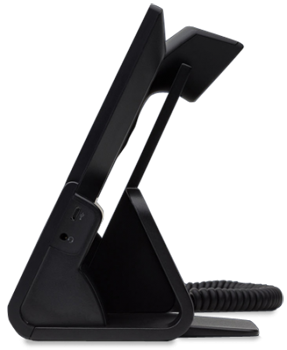

Side View
Side View

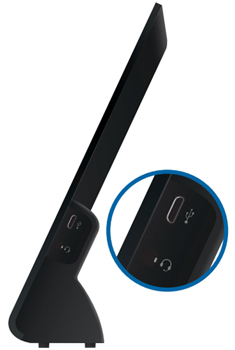

Side Ports View
Side Ports View

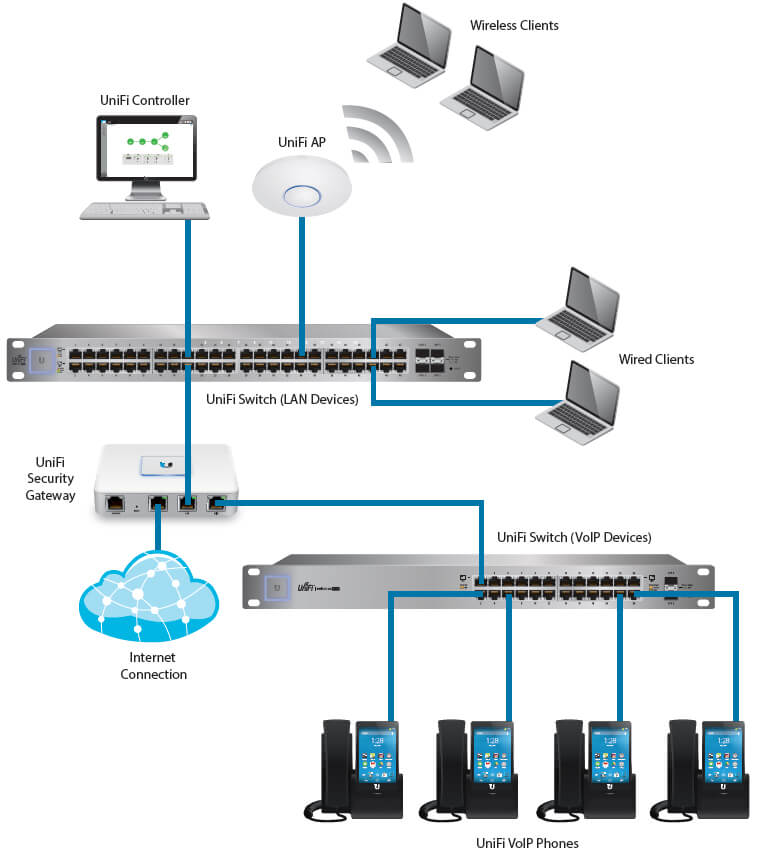

Deployment:

The UniFi VoIP Phone adds enterprise VoIP to a UniFi network. The UniFi VoIP Phone requires the following:

  • UniFi Switch or 802.3af compliant switch for UVP, 802.3at compliant switch for UVP-Pro/UVP-Executive
  • UniFi Controller
  • UniFi Security Gateway
UniFi VoIP Phone Deployment

Specifications:

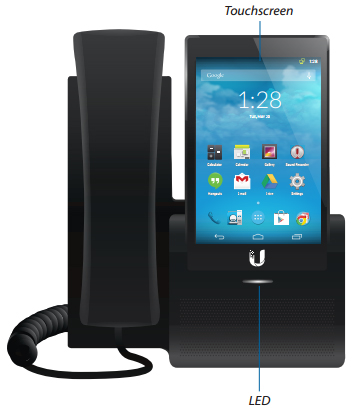

Front View
Front View

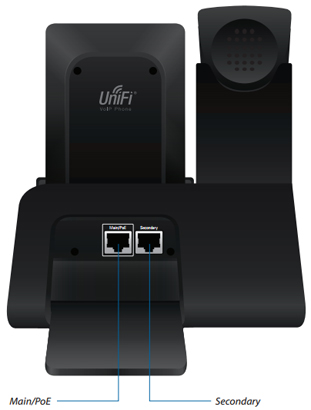

Rear View
Rear View

UVP Specifications
Dimensions 166 x 140 x 182.5 mm (6.50 x 5.50 x 7.19")
Weight 1.10 kg (2.43 lbs)
Display 5" (Diagonal), 640 x 960, 231 ppi, Multi-Touch, Full Color
LED Power: White, Glowing
Handset Dynamic Receiver 32 ohm/101 dB/30mW
Microphone Omni-Directional/-36 dB/2.2K ohm
Echo Cancellation DSP Removing Ambient Noise and Acoustic Echo
Power Input PoE 802.3.af (13W)
Hands-Free Speaker Mono 2.6W
Hands-Free Microphone Omnidirectional/SNR 61 ± 5 dB/Sensitivity -38 ± 3 dB Analog Silicon Microphone
Connectivity (2) 10/100/1000 Ethernet Ports
(1) USB 2.0 microUSB Port
Headset Support 3.5 mm Audio Jack
270mW CTIA (LRGM)
Accessory Detection Volume Up/Down and Media Detection
Processor Dual-Core Cortex A9, 1.2 GHz
Storage 4 GB (Shared with Other Applications)
RAM 1 GB
Software
OS Android Kit Kat (Version 4.4.2)
Voice Codec G.722/Speex/iLBC/PCMU/PCMA/GSM
Communication Software UniFi Phone App
Management Features Auto-Provisioning
Protocol SIP/SDP/RTP/RTCP/VLAN/DHCP

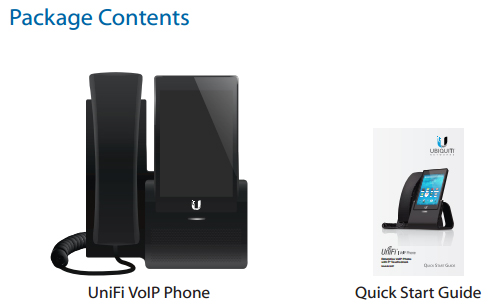

Package Contents

Documentation:

Download the Ubiquiti UniFi VoIP Phone Datasheet (PDF).
