Ubiquiti TOUGHSwitch PoE
Advanced Power over Ethernet Controllers

Overview:

Cost effective 5-port Gigabit switch with 24V PoE support for each port. It is ideal for powering Ubiquiti airMAX, UniFi, and airVision devices.

• 5 Gigabit PoE Ports
• 24V Configurable Passive PoE
• TOUGHSwitch PoE Configuration Interface
• Wall-Mountable

Advanced Gigabit PoE Managed Switch

Introducing the Advanced Power over Ethernet Controllers, TOUGHSwitch PoE from Ubiquiti Networks. TOUGHSwitch PoE delivers reliable passive PoE and fast 10/100/1000 Mbps connectivity to attached Ubiquiti devices and other devices that support passive PoE.

To connect your PoE devices, simply enable PoE in the easy-to-use TOUGHSwitch Configuration Interface. Each port can be individually configured to provide PoE, so both PoE and non-PoE devices can be connected.

Intuitive Configuration Interface

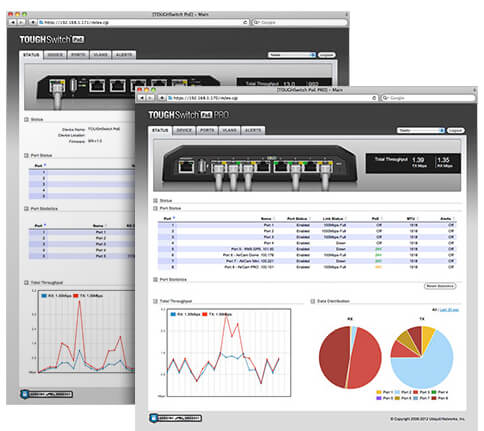

TOUGHSwitch PoE provides a user-friendly configuration interface designed for efficient setup and control. Accessed via a secured management port and web browser, the TOUGHSwitch Configuration Interface provides intuitive management with a virtual view of the ports, showing physical connectivity, speed, and PoE status.

Advanced Features

TOUGHSwitch PoE is loaded with a variety of advanced fatures, including:

• Port monitoring
• System connection and management services
• Virtual Local Area Network (VLAN) configuration
• Spanning Tree Protocol (STP)/Rapid Spanning Tree Protocol (RSTP)
• Jumbo Frame Support
• Ping Watchdog
• Configurable alerts

Features:

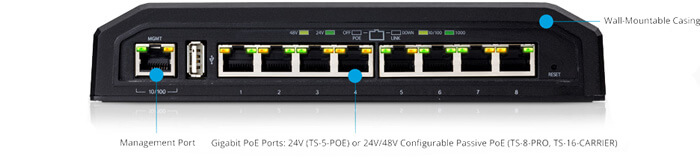

Clean Industrial Design

The TOUGHSwitch is designed to simplify deployment, consolidating the delivery of data and passive PoE (as needed).

Intuitive UI

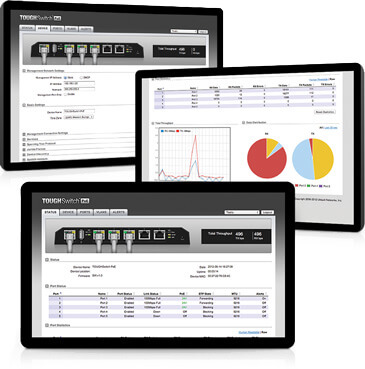

Designed for efficient setup and control, the graphical user interface is easy to use and manages advanced Layer 2 features, including:

• Port monitoring
• System connection and management services
• Virtual Local Area Network (VLAN) configuration
• Spanning Tree Protocol (STP)/Rapid Spanning Tree Protocol (RSTP)
• Jumbo frame support
• Ping Watchdog
• Configurable alert

Deployment:

Simplify Your Deployment

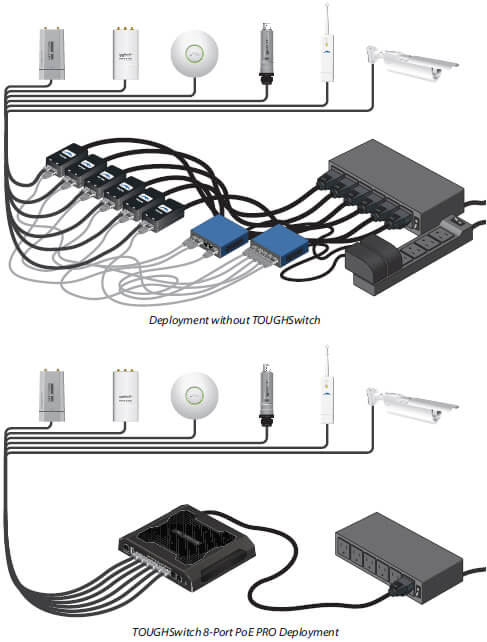

TOUGHSwitch PoE allows network architects to design cleaner, less cluttered deployments. For example, integrating one TOUGHSwitch PoE PRO can eliminate the need for the following:

• 8 PoE adapters
• 8 power cords
• 8 power outlets
• 8 Ethernet patch cables

TOUGHSwitch PoE deployments increase efficiency and greatly reduce potential failure points - resulting in faster installations and less maintenance and troubleshooting.

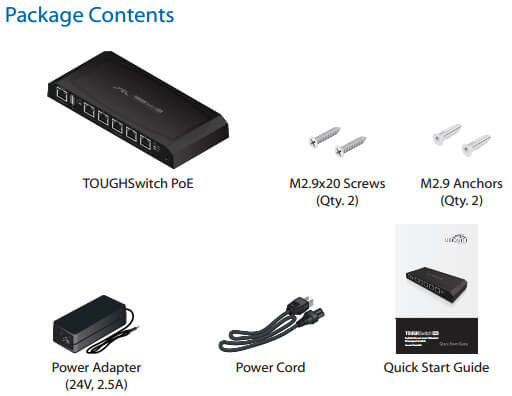

Product Views:

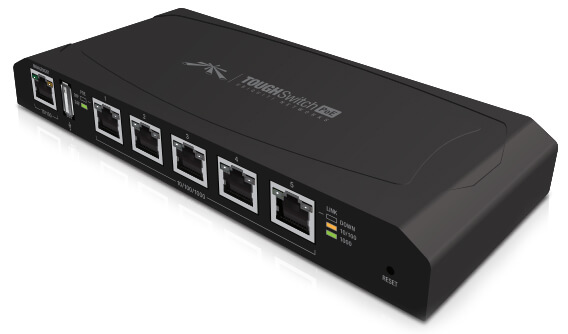

Left Angle View

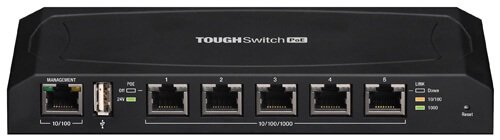

Front View

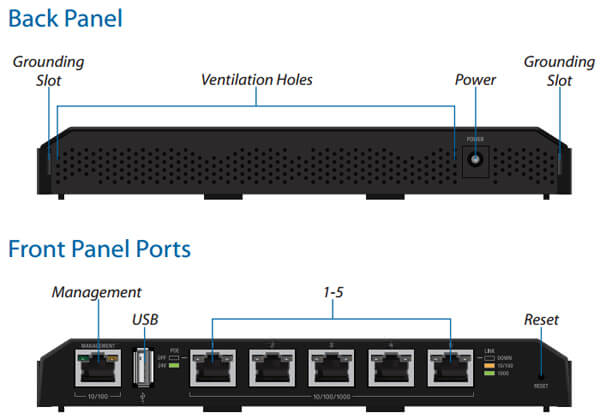

Rear View

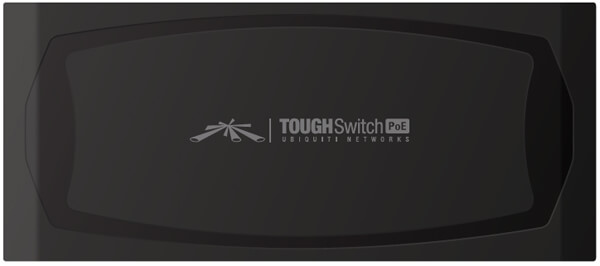

Top View

Specifications:

5-Port TOUGHSwitch PoE Specification
Dimensions	197 x 87.5 x 27.3 mm
Weight	250 g
Power Input	24VDC, 2.5A Power Adapter (Included)
Max. Power Consumption	60 W
PoE Out Voltage Range	22-24VDC
Max. PoE Wattage Per Data Port	18 W
ESD Rating	24 kV Air / 24 kV Contact
PoE Method	Passive
Button	Reset
Button	2.0 Type A (Reserved for Future Use)
Processor	MIPS24K 400 MHz
System Memory	64 MB
Code Storage	8 MB
Certifications	CE, FCC, IC
Wall-Mount	Yes
Operating Temperature	-25 to 55°C (-13 to 131° F)
Operating Humidity	90% Non-Condensing
PoE Configurable Per Port
Management Port	N/A
Data Ports	Off/24V
LEDs Per Port
Management Port	Power /Link/Activity
Data Ports	PoE, Speed/Link/Activity
Networking Interfaces
Management Port	(1) 10/100 Ethernet Port
Data Ports	(5) 10/100/1000 Ethernet Ports

Miscellaneous:

Protect your networks from the most brutal environments with Ubiquiti's industrialgrade shielded ethernet cable, TOUGHCable.

• Increase Performance - Dramatically improve your ethernet link states, speeds, and overall performance with Ubiquiti TOUGHCables.
• Extreme Weatherproof - TOUGHCables have been built to perform even in the harshest weather and environments.
• ESD Damage Protection - Protect your networks from devastating electrostatic discharge (ESD) attacks.
• Extended Cable Support - TOUGHCables have been developed to have increased power handling performance for extended cable run lengths.

Bulletproof your networks

TOUGHCable is currently available in two versions: PRO Shielding Protection and CARRIER Shielding Protection.

Additional Information:

• 24 AWG copper conductor pairs
• 26 AWG integrated ESD drain wire to prevent ESD attacks and damage
• PE outdoor-rated, weatherproof jacket
• Multi-layered shielding
• Available in lengths of 1000 ft (304.8 m)

TOUGHCable Connectors

Specifically designed for use with Ubiquiti TOUGHCables and available in 100 pc. bags, TOUGHCable Connectors protect against ESD attacks and Ethernet hardware damage while allowing rapid field deployment without soldering.

ESD Attacks are overwhelmingly the leading cause for device failures. The diagram below illustrates the areas vulnerable to ESD Attacks in a defenseless network.	By using a grounded Ubiquiti POE adapter (included) along with Ubiquiti TOUGHCable (sold separately), you can effectively eliminate ESD Attacks.

Documentation:

Download the Ubiquiti TOUGHSwitch PoE Datasheet (PDF).
