Ubiquiti CRM Point
Compact Plug and Play Device Management

Ubiquiti CRM Point

Sorry, this product is no longer available, please contact us for a replacement.


Overview:

Ubiquiti Networks introduces the CRM Point, a compact, locally hosted solution for management of your airMAX and airMAX ac network devices from a central point.

  • Plug and play
  • Breakthrough size and performance
  • Powerful quad-core architecture
  • Versatile scalability
  • No hosting fees

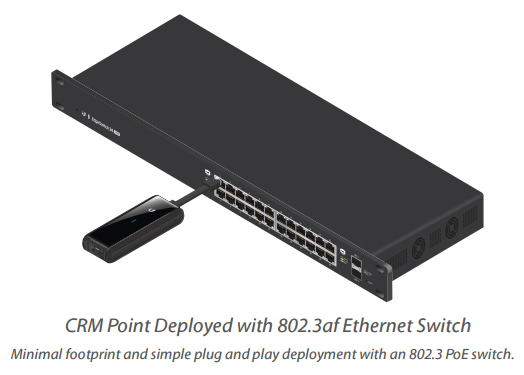

CRM Point Deployed with 802.3af Ethernet Switch

Usage Examples

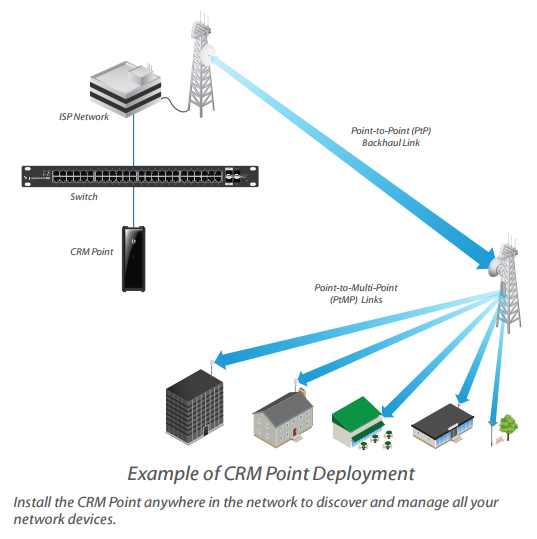

Example of CRM Point Deployment

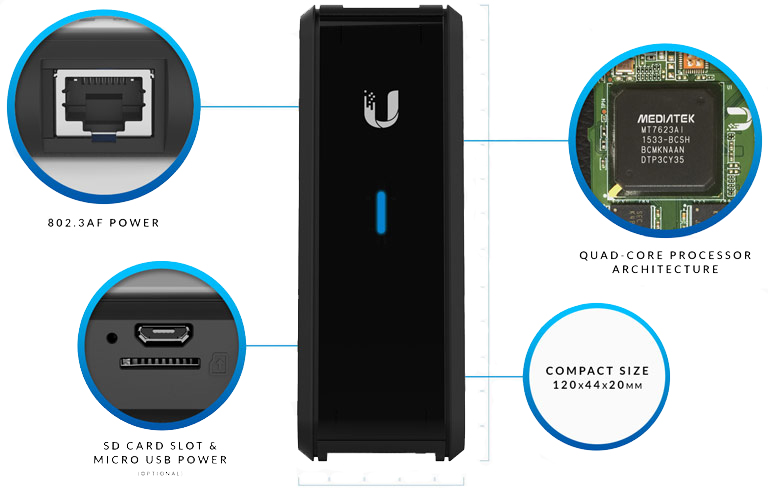

Powerful Quad-Core Architecture

Featuring a quad-core processor, the CRM Point provides top-level processing power for centralized device management.

Versatile Scalability

The CRM Point scales to host networks of almost any size to meet your growing management needs.

No Hosting Fees

The U CRM Control software and all of its data are stored locally on the CRM Point, eliminating the costs associated with third-party cloud storage.

Features:

Breakthrough Size and Performance

The pocket-sized CRM Point provides top processing power for centralized device management.

Breakthrough Size and Performance

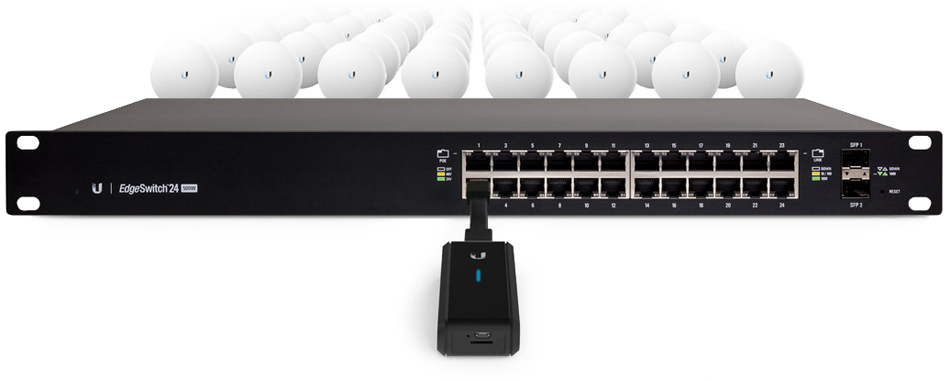

Plug and Play Installation with Any Switch or Router

Scalable to 100's of devices, the CRM Point hosts networks of almost any size to meet your growing management needs.

Plug and Play Installation with Any Switch or Router

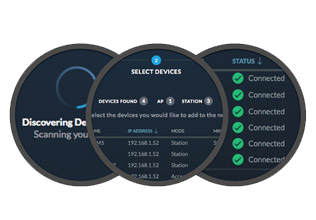

Advanced Device Management

The U CRM Control software is pre-installed for immediate deployment and enables intuitive network management.

Advanced Device Management

Device Discovery

Quickly discover and adopt devices on your network.

Device Discovery

Monitor Network

Network health at a glance via the system dashboard.

Monitor Network

Batch Management

Upgrade firmware of multiple devices simultaneously.

Batch Management

Product Views:

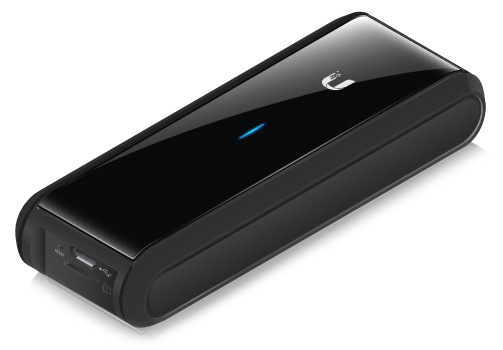

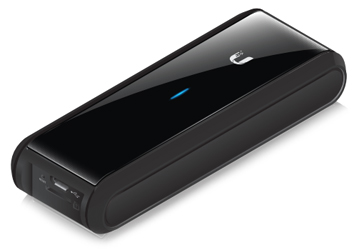

Angle View
Angle View

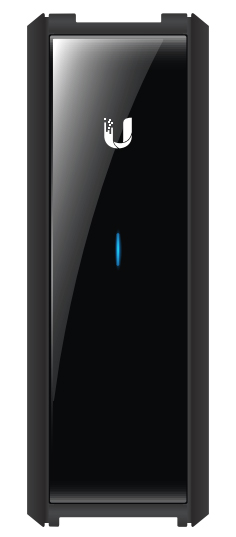

Top Front View
Top Front View

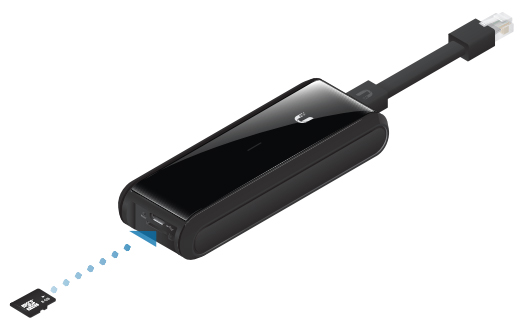

microSD Card into the microSD Slot
microSD Card into the microSD Slot

Specifications:

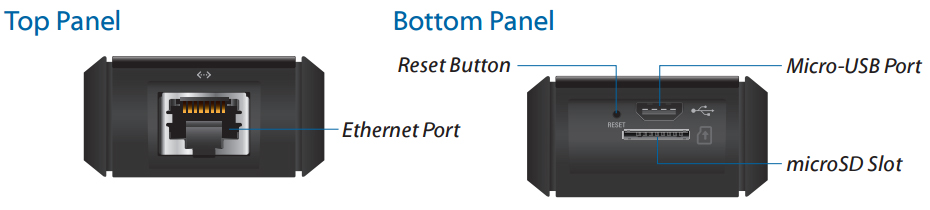

Top and Bottom Panel

CRM-P Specifications
Physical / Electrical / Environmental
Dimensions 21.7 x 43.4 x 121.9 mm (0.85 x 1.71 x 4.80")
Weight 110 g (3.88 oz)
Max. Power Consumption 5W
Power Method PoE: 48V 802.3af or Passive PoE (Pairs 4, 5+; 7, 8 Return)
Micro-USB: 5V
Power Supply 802.3af PoE or Micro-USB 5V, 1A
Operating Temperature 0 to 40° C (32 to 104° F)
Operating Humidity 20 to 90% Noncondensing
System Information
Processor Qual-Core SoC
System Memory 2 GB DDR3
Networking Interface (1) 10/100/1000 RJ45 Port
Memory Interface (1) microSD Port
Button Reset
LED Factory Defaults/Device Busy/Device Working
Regulatory / Compliance Information
Certifications CE, FCC, IC

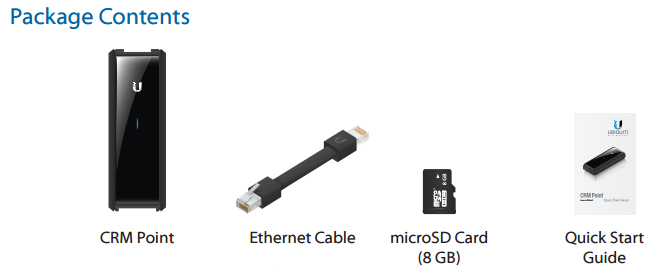

Package Contents

Software:


U CRM Control

The U CRM Control software comes pre-installed on the CRM Point for immediate deployment. The software provides an intuitive user interface with powerful features for advanced network and device management. Using the U CRM Control software, you can now manage groups of airMAX and airMAX ac devices from anywhere in the network.

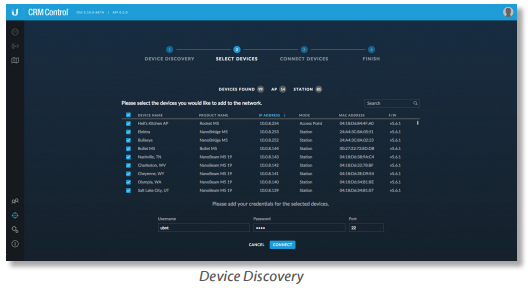

Device DiscoveryDevice Discovery

U CRM Control lets you quickly discover all airMAX and airMAX ac devices within your network. In addition to automatic device discovery, you can also scan IP ranges or manually add devices using their IP addresses.

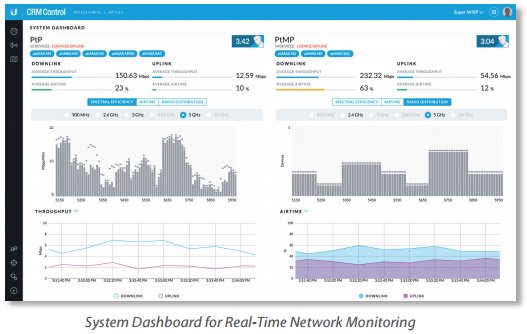

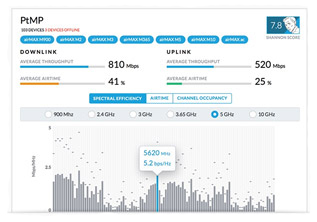

Network MonitoringNetwork Monitoring

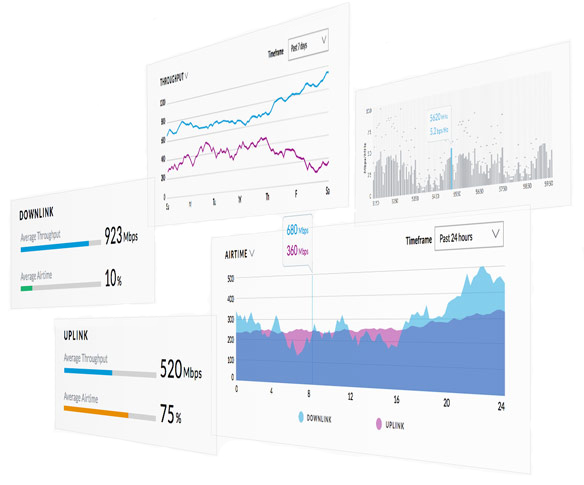

Check the system dashboard to display a summary of the current network status and to get real-time updates on the network status. The dashboard shows the PtP and PtMP networks. For each network type, you can display the spectral efficiency, airtime, and radio distribution for all applicable frequency bands. Real-time graphs also display throughput or airtime statistics.

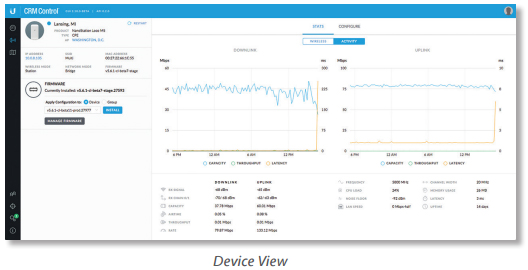

Device ViewsDevice Views

Track network performance with summary and detailed device views. Monitor uplink and downlink statistics, including charts of wireless signal quality and device activity. Search for a specific device or use filters to quickly find the devices you're looking for.

Batch Firmware Upgrades

The U CRM Control software allows you to upgrade firmware simultaneously on multiple airMAX and airMAX ac devices, saving you valuable time.

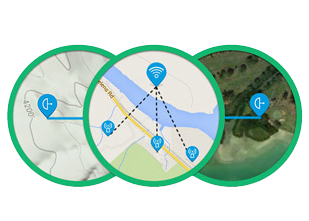

Link SimulationsLink Simulations

The powerful link simulator helps you to plan your deployments. Create a point-to-point simulation anywhere on the map and test the link performance with immediate feedback based on terrain data and device configuration.

Documentation:

Download the Ubiquiti CRM Point Overview (PDF).
