Ubiquiti AirGrid M2-HP Series
airMAX Wireless Broadband CPE Technology

Ubiquiti AirGrid M2-HP Series

Ubiquiti Products
AirGrid M Series - Small (11 x 14")

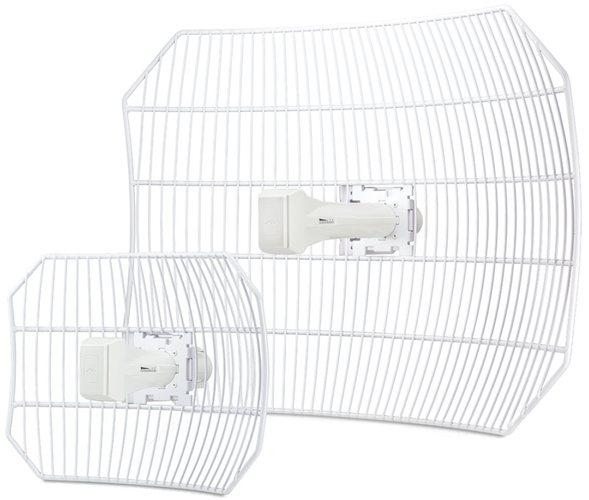

Ubiquiti AirGrid M2-HP 11 x 14"
2.4GHz CPE Technology, 16 dBi Grid Antenna, 24VDC, 600mW
#AG-HP-2G16
Get a Quote!
AirGrid M Series - Large (17 x 24")
Ubiquiti AirGrid M2-HP 17 x 24"
2.4GHz CPE Technology, 20 dBi Grid Antenna, 24VDC, 600mW
#AG-HP-2G20
Our Price: $276.00

Click here to jump to more pricing!

Overview:

AirGrid M GHzUtilizing InnerFeed™ technology, the new airGrid™M HP Series from Ubiquiti Networks™ represents the latest evolution of outdoor wireless broadband devices. The revolutionary InnerFeed technology integrates the entire radio system into the feedhorn of the antenna. airGridM combines Ubiquiti's InnerFeed and airMAX™ (TDMA protocol) technologies to create a simple, yet extremely powerful and robust wireless CPE (Customer Premises Equipment).

ChartComplete antenna and radio system integration provides affordable cost/performance solutions to the wireless broadband industry. airGridM operates in the worldwide, license-free frequency range of either 2 GHz or 5 GHz, and features breakthrough performance up to 100+ Mbps in real outdoor throughput and incredible range up to 30+ km.

The low-cost, high-performance, robust "all-in-one" design and light weight of airGridM make it versatile and ideal in several different applications.

  • InnerFeed antenna technology with complete radio system integration.
  • Breakthrough speed 100+ Mbps real TCP/IP throughput.
  • 30+ km Long Range - The device was specifically designed for outdoor PtP bridging and PtMP airMAX base-station applications.
  • +/- 15kV radio frequency and Ethernet Electrostatic Discharge (ESD) protection.

Application Examples
Application Examples

Utilize airMAX Technology

airMAXUnlike standard Wi-Fi protocol, the exclusive Ubiquiti Networks airMAX Time Division Multiple Access (TDMA) protocol allows each client to send and receive data using pre-designated time slots managed by an intelligent AP controller. This "time slot" method eliminates hidden node collisions and maximizes airtime efficiency.

Compared to other systems in its class, the airGridM delivers superior performance in reduced latency, throughput, and scalability.

  • Intelligent QoS - Priority is given to voice/video seamless access.
  • Scalability - High capacity and scalability.
  • Long Distance - Capable of high-speed, 30+ km links.

airMAX TDMA Technology
Up to 100 airMAX stations can be connected to an airMAX Sector; four airMAX
stations are shown to illustrate the general concept

Robust and Simple Design

AirGrid M HP was designed to be extremely robust to use. It can be easily oriented to use either vertical or horizontal polarization. To adjust polarization, just rotate the antenna in the desired polarization position and rotate the opening on the rear portion of the feed to face the ground (for optimal weatherproofing).

Vertical and Horizontal PolarityAirGrid M HP is available for 2.4GHz and 5GHz in both 11x14" and 17x24" grid dimensions. A "snap-on" feed extension is included when using 17x24".

Mechanical design provides complete weatherproof performance. Activity and signal strength LED's provided for installers.

Enhanced RF and Ethernet ESD/Surge protection enables prolonged operation in harshest environments.

Easy, No Tool Assembly

The updated mechanical design makes assembling and disassembling the airGridM, literally, a snap. No tools are required. You simply snap the feed, antenna, mounting bracket and rear housing together for a secure, solid assembly.

Easy, No Tool Assembly

Features:


Long-Range Links

Designed to be a highly directive CPE device, the airGrid M performs at a range of up to 50+ km.

Long-Range Links

Maximum RF Performance

Ubiquiti’s InnerFeed™ technology seamlessly combines the radio and reflector feed for maximum RF performance.

Maximum RF Performance

Powerful airOS FeaturesAdvanced Software Technology

Ubiquiti’s airMAX technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments. The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks.

Powerful airOS  Features

Ubiquiti’s versatile airOS firmware technology enables high-performance, outdoor multi-point networking. airOS provides features such as wireless settings, bridge or routing configuration and system management services.

Plug and Play Installation

The airGrid M requires no tools for assembly; only a single wrench is required for pole-mounting.

Product Views:

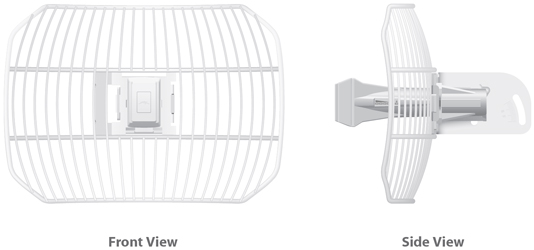

airGrid M2 HP 11 x 14" (Small)
airGrid M2-HP 11 x 14" (Small)
2412 - 2462 MHz, 16 dBi

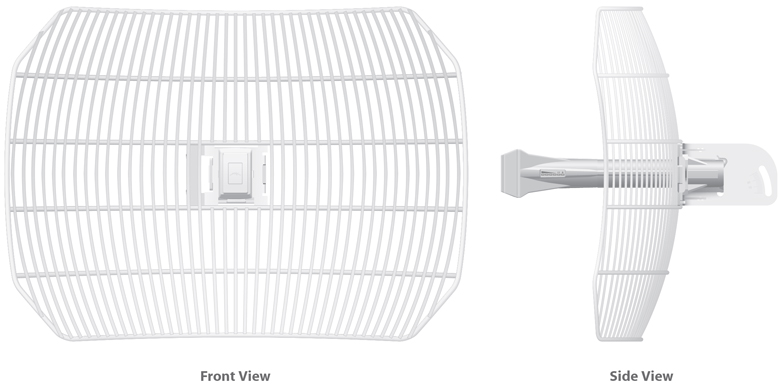

airGrid M2 HP 17 x 24" (Big)
airGrid M2-HP 17 x 24" (Large)
2412 - 2462 MHz, 20 dBi

Specifications:

  AG-HP-2G16 (Small) AG-HP-2G20 (Large)
System Information
Processor Specs Atheros MIPS 24KC, 400MHz
Memory Information 32MB SDRAM, 8MB Flash
Networking Interface (1) 10/100 Ethernet Port
Physical / Electrical / Environmental
Dimensions 370 x 270 x 270 mm (Mount Included) 620 X 460 X 390 mm (Mount Included)
Weight 1478 g (Mount Included) 2603 g (Mount Included)
Wind Survivability 125 mph
Wind Loading 8 lbf @ 125 mph
Enclosure Characteristics Outdoor UV Stabilized Plastic
Mounting Kit Pole Mounting Kit included
Power Supply 24V, 0.5A PoE Adapter (Included)
Power Method Passive Power over Ethernet (Pairs 4, 5+; 7, 8 Return)
Max Power Consumption 3 W
Operating Temperature -30 to 75° C
Operating Humidity 5 to 95% Condensing
Shock and Vibration ETSI300-019-1.4
ETSI Specification EN 302 326 DN2
Regulatory / Compliance Information
Wireless Approvals FCC Part 15.247, IC RS210, CE
RoHS Compliance Yes

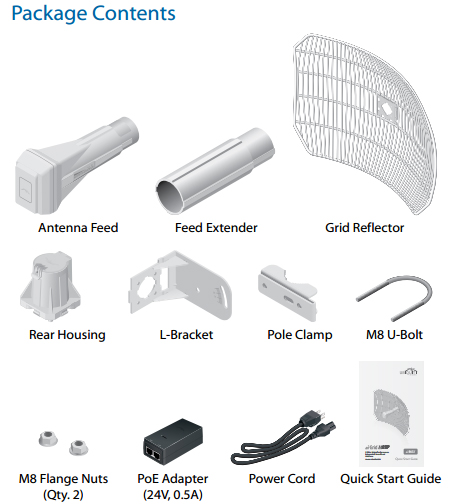

Package Contents

Operating Frequency:

AirGrid M2-HP Small (11 x 14")
Operating Frequency 2412-2462 MHz
Output Power 28 dBm
Max. VSWR 1.5:1
Gain 16 dBi
TX Power Specifications RX Power Specifications
Modulation DataRate Avg. TX Tolerance Modulation DataRate Avg. TX Tolerance
11g 1-24 Mbps 28 dBm ± 2 dB 11g 1-24 Mbps -97 dBm ± 2 dB
36 Mbps 26 dBm ± 2 dB 36 Mbps -80 dBm ± 2 dB
48 Mbps 25 dBm ± 2 dB 48 Mbps -77 dBm ± 2 dB
54 Mbps 24 dBm ± 2 dB 54 Mbps -75 dBm ± 2 dB
11n / AirMax MCS0 28 dBm ± 2 dB 11n / AirMax MCS0 -96 dBm ± 2 dB
MCS1 28 dBm ± 2 dB MCS1 -95 dBm ± 2 dB
MCS2 28 dBm ± 2 dB MCS2 -92 dBm ± 2 dB
MCS3 28 dBm ± 2 dB MCS3 -90 dBm ± 2 dB
MCS4 27 dBm ± 2 dB MCS4 -86 dBm ± 2 dB
MCS5 25 dBm ± 2 dB MCS5 -83 dBm ± 2 dB
MCS6 23 dBm ± 2 dB MCS6 -77 dBm ± 2 dB
MCS7 22 dBm ± 2 dB MCS7 -74 dBm ± 2 dB
AirGrid M2-HP Large (17 x 24")
Operating Frequency 2412-2462 MHz
Output Power 28 dBm
Max. VSWR 1.5:1
Gain 20 dBi
TX Power Specifications RX Power Specifications
Modulation DataRate Avg. TX Tolerance Modulation DataRate Avg. TX Tolerance
11g 1-24 Mbps 28 dBm ± 2 dB 11g 1-24 Mbps -97 dBm ± 2 dB
36 Mbps 26 dBm ± 2 dB 36 Mbps -80 dBm ± 2 dB
48 Mbps 25 dBm ± 2 dB 48 Mbps -77 dBm ± 2 dB
54 Mbps 24 dBm ± 2 dB 54 Mbps -75 dBm ± 2 dB
11n / AirMax MCS0 28 dBm ± 2 dB 11n / AirMax MCS0 -96 dBm ± 2 dB
MCS1 28 dBm ± 2 dB MCS1 -95 dBm ± 2 dB
MCS2 28 dBm ± 2 dB MCS2 -92 dBm ± 2 dB
MCS3 28 dBm ± 2 dB MCS3 -90 dBm ± 2 dB
MCS4 27 dBm ± 2 dB MCS4 -86 dBm ± 2 dB
MCS5 25 dBm ± 2 dB MCS5 -83 dBm ± 2 dB
MCS6 23 dBm ± 2 dB MCS6 -77 dBm ± 2 dB
MCS7 22 dBm ± 2 dB MCS7 -74 dBm ± 2 dB

Antenna Information:


AirGrid M2-HP Small (11 x 14")
Azimuth
AG-HP-2G16 Azimuth
Elevation
AG-HP-2G16 Elevation
AirGrid M2-HP Large (17 x 24")
Azimuth
AG-HP-2G20 Azimuth
Elevation
AG-HP-2G20 Elevation

Software:

AirOS Software

airOS
Software to Easily Manage Devices and Reach Customers

AirOS is an intuitive, versatile, highly developed Ubiquiti firmware technology that resides on Ubiquiti Station products. It is exceptionally intuitive and was designed to require no training to operate. Behind the user interface is a powerful firmware architecture which enables hi-performance outdoor multipoint networking.

airOS Version 7

Sporting an all-new design for improved usability, airOS v7 is the revolutionary operating system for Ubiquiti airMAX ac products.

Powerful Wireless Features

  • airMAX ac Protocol Support
  • Long-Range Point-to-Point (PtP) Link Mode
  • Selectable Channel Width
  • PtP: 10/20/30/40/50/60/80 MHz
  • PtMP: 10/20/30/40 MHz
  • Automatic Channel Selection
  • Transmit Power Control: Automatic/Manual
  • Automatic Distance Selection (ACK Timing)
  • Strongest WPA2 Security

Usability Enhancements

  • Dynamic Configuration Changes
  • Instant Input Validation
  • HTML5 Technology
  • Optimization for Mobile Devices
  • Detailed Device Statistics
  • Comprehensive Array of Diagnostic Tools, including Ethernet Cabling Test, RF Diagnostics, and airView Spectrum Analyzer

Multi-Radio ArchitectureAdvanced RF Analytics

airMAX ac devices feature a multi-radio architecture to power a revolutionary RF analytics engine.

An independent processor on the PCBA powers a second, dedicated radio, which persistently analyzes the full 5 GHz spectrum and every received symbol to provide you with the most advanced RF analytics in the industry.

Data from the spectrum analysis and RF performance monitoring is displayed on the Main tab and airView Spectrum Analyzer of airOS V7.

Real-Time Reporting

The Main tab displays the following RF information:

  • Persistent RF Error Vector Magnitude (EVM) constellation diagrams
  • Carrier to Interference-plus-Noise Ratio (CINR) histograms
  • Signal-to-Noise Ratio (SNR) time series plots

Persistent RF EVM Constellation Diagrams, CINR Histograms, and SNR Time Series

airMAX ac devices have an additional dedicated radio persistently analyzing the full 5 GHz spectrum and every received symbol to provide operators with the most advanced RF analytics in the industry.

Constellation Diagrams and CINR Histograms
Constellation Diagrams and CINR Histograms

SNR Time Series Plots
SNR Time Series Plots

airOS Integrated Technologies

airMAX – Provides superior wireless performance, more clients per Access Point (AP), and lower latency. Unlike standard WiFi protocol, Ubiquiti's Time Division Multiple Access (TDMA) airMAX protocol allows each client to send & receive data using pre-designated time slots scheduled by an intelligent AP controller.

This "time slot" method eliminates hidden node collisions & maximizes air time efficiency. It provides many magnitudes of performance improvements in latency, throughput, & scalability.

A Comprehensive Array of Diagnostic Tools

Wireless Modes

  • Access Point
  • Station/Client
  • AP-Repeater

Wireless Network Configuration

  • airMAX Mode
  • airSelect Mode
  • Long Range PtP Link Mode
  • Mixed IEEE 802.11 Mode (A/N or B/G/N)
  • WDS (Transparent Bridge Mode)
  • Selectable Channel Width: 2/3/5/8/10/20/25/30/40 MHz
  • Auto Channel Selection
  • Channel Shifting
  • Transmit Power Control: Automatic/Manual
  • Automatic Distance Selection (ACK Timing)
  • SSID Broadcast Disabling
  • Wireless Access Control List
  • Wireless Security: WEP/WPA/WPA2
  • Wireless Client Isolation
  • Adjustable Aggregation Frames/Bytes
  • WMM

Network Configuration

  • Administrator/Read-Only Access
  • Location: Latitude and Longitude
  • Signal LED Indication Level Management
  • WEB/SSH/Telnet Access
  • Block Management Access
  • Dynamic DNS
  • NTP Client
  • Ping Watchdog
  • SNMP v1 Support
  • System Log: Local/Remote
  • Full Statistical Performance Reporting

Network Modes

  • Transparent Layer 2 Bridge
  • Router
  • SOHO Router

Management

  • Automatic check for airOS Updates
  • Configuration Test Mode
  • Firmware Recovery via TFTP
  • Reset to Factory Defaults
  • Configuration Management: Backup/Restore

Network Configuration

  • Simple/Advanced Configuration Mode
  • Multiple VLANs Support
  • Multiple Bridge Support
  • DHCP Server/Client/Relay
  • DNS Proxy
  • Adjustable MTU
  • PPPoE Client
  • IP Aliasing: Auto/Static
  • Fallback IP Support: DHCP/PPPoE
  • MAC Address Cloning
  • Port Forwarding (NAPT)
  • Masquerading (NAT)
  • Static Routing
  • Multicast Routing
  • Firewall: Layer 2/IPv4/IP-P2P
  • Traffic Shaping: Ingress/Egress
  • DMZ
  • UPnP

Spectrum AnalyzerairView
Spectrum Analyzer by Ubiquiti Networks

signatures and plan your networks to minimize noise interference. airView performs the following functions:

  • Constantly monitors environmental noise
  • Collects energy data points in real-time spectral views
  • Helps optimize channel selection, network design, and wireless performance

airView runs in the background without disabling the wireless link, so there is no disruption to the network.

In airView, there are three spectral views, each of which represents different data.

  • Waterfall Aggregate energy collected for each frequency
  • Waveform Aggregate energy collected
  • Ambient Noise Level Background noise energy shown as a function of frequency

Available with a firmware upgrade to airOS v7.1, airView provides powerful spectrum analyzer functionality, eliminating the need to rent or purchase additional equipment for conducting site surveys.

Waterfall Chart

This time-based graph shows the aggregate energy collected since the start of an AirView session, over time for each frequency. The power of the energy in dBm is shown across the frequency span and one row is inserted in this graph every few seconds.

It is important to note that the color of the energy designates its amplitude. The darker colors (Blues and darker shades) mean very low to low energy levels at that frequency bin, whereas increasingly brighter colors (ie: Green, Yellow, Orange, and finally Red) designate increasingly higher energy levels at the specific frequency bin.

The Waterfall View's legend (top-right corner) provides a numerical guide associating the various colors to power levels (dBm). The low end of that legend (left) is always adjusted with the calculated noise floor, and the high end (right) is set to the highest detected power level since the start of the session.

Waterfall Chart

Channel Usage Chart

This graph is ideal for determining the best channel to setup a WiFi network for optimal performance. In the graph, each 2.4GHz WiFi channel is represented by a bar displaying a percentage representing the relative "crowdedness" of that specific channel.This percentage is calculated by analyzing both the popularity and the strength of RF energy in that channel since the start of a AirView session. An installer could use this view to optimize a network installation by avoiding highly used channels and setting up new AP's on channels showing the least usage.

Channel Usage Chart

Waveform Chart

This graph shows the aggregate energy collected since the start of an AirView Session. The power of the energy in dBm is shown across the frequency span. A Blue color will mean energy at a particular strength and frequency appears in the air with a relatively low occurence, whereas increasingly brighter colors (ie: Green, Yellow, Orange, and finally Red) designate energy appearing at a specific power/frequency with higher occurrence. The spectral view over time will essentially display the steady-state RF energy signature of a given environment. An installer could use this view to optimize a network installation by avoiding highly used channels and setting up new AP's on channels showing the least usage.

Waveform Chart

Real-time Chart

This graph displays a traditional Spectrum Analyzer in which energy (in dBm) is shown real-time as a function of frequency. There are three traces in this view: Max Hold, this trace will update and hold maximum power levels across the frequency since the start of an AirView session. Average, this trace shows the running average energy across frequency. Real-time, this trace shows the real-time energy seen by the AirView device as a function of frequency.

Real-time Chart

airControl ScreenshotairControl
Centrally Manage 1000s of Ubiquiti Devices

AirControl is a powerful and intuitive web based server network management application which allows operators to centrally manage entire networks of Ubiqutii devices.

  • Network Map - View access points and stations on a Google Road, Terrain, or Satellite Picture Map to aid in installation planning. Export to KML.
  • Monitor Device Status - View status, information, and statistics of devices managed by AirControl on customizable and easy-to-read graphs.
  • Mass Firmware Upgrade - Upgrade individual devices or groups of devices with synchronization for wireless association dependency.
  • Web UI Access - Access the AirControl user interface through a web browser (HTTP or HTTPS); no installation is required on the client.
  • Manage Groups of Devices - User-defined, dynamic, and auto device groups provide easy navigation and device management.
  • Task Scheduling - Schedule tasks such as firmware update, reboot, IP range scan, device configuration backups, ping watchdog and custom commands execution.

airCRM ScreenshotsairCRM

Powerfully scale your business with airCRM, a suite of WISP applications that help you manage your business. To sign up for the public beta, visit: aircrm.ubnt.com

airCRM Control

Provision, monitor, and manage all devices from a central interface. Enjoy quicker deployments, healthier networks, and faster customer service response times.

Use airCRM Control to perform the following tasks:

  • Upgrade firmware
  • Manage passwords
  • Monitor and analyze network traffic
  • Manage devices

airCRM Billing

A streamlined billing and customer management solution delivers automated invoicing, payment reminders, and credit card processing with Authorize.Net.

Use airCRM Billing to perform the following tasks:

  • Create invoices
  • Manage accounts
  • Enable a customer portal
  • Generate detailed reports

Miscellaneous:


TOUGHCable BoxTOUGHCable
Protect your networks from the most brutal environments with Ubiquiti's industrialgrade shielded ethernet cable, TOUGHCable.

  • Increase Performance - Dramatically improve your ethernet link states, speeds, and overall performance with Ubiquiti TOUGHCables.
  • Extreme Weatherproof - TOUGHCables have been built to perform even in the harshest weather and environments.
  • ESD Damage Protection - Protect your networks from devastating electrostatic discharge (ESD) attacks.
  • Extended Cable Support - TOUGHCables have been developed to have increased power handling performance for extended cable run lengths.

Bulletproof your networks

TOUGHCable is currently available in two versions: PRO Shielding Protection and CARRIER Shielding Protection.

TOUGHCable PRO is a Category 5e, outdoor, carrier-class shielded cable with an integrated ESD drain wire.

TOUGHCable PRO

TOUGHCable CARRIER is a Category 6, outdoor, carrier-class shielded cable that features an integrated ESD drain wire, anti-crosstalk divider, and secondary shielding. It is rated to provide optimal performance on Gigabit Ethernet networks.

TOUGHCable CARRIER

Additional Information:

  • 24 AWG copper conductor pairs
  • 26 AWG integrated ESD drain wire to prevent ESD attacks and damage
  • PE outdoor-rated, weatherproof jacket
  • Multi-layered shielding
  • Available in lengths of 1000 ft (304.8 m)

TOUGHCable Connectors

Specifically designed for use with Ubiquiti TOUGHCable, TOUGHCable Connectors protect against ESD attacks and Ethernet hardware damage, while allowing rapid field deployment without soldering. The standard TOUGHCable Connectors are available in a box of 100, while the TC-GND versions include ground wires and are available in a box of 20.

ESD attacks are the leading cause for device failures. The diagram below illustrates the areas vulnerable to ESD attacks in a network. By using a grounded Ubiquiti Power over Ethernet (PoE) Adapter along with Ubiquiti TOUGHCable and TOUGHCable Connectors, you can effectively protect against ESD attacks.
TOUGHCable Connectors

TOUGHSwitch PoE with ScreenshotsToughtSwitch PoE
Advanced Gigabit PoE Managed Switch

Introducing the Advanced Power over Ethernet Controllers, TOUGHSwitch™ PoE from Ubiquiti Networks. TOUGHSwitch PoE delivers reliable passive PoE and fast 10/100/1000 Mbps connectivity to attached Ubiquiti devices and other devices that support passive PoE.

To connect your PoE devices, simply enable PoE in the easy-to-use TOUGHSwitch Confi guration Interface. Each port can be individually confi gured to provide PoE, so both PoE and non-PoE devices can be connected.

Simplify Your Deployment

TOUGHSwitch PoE allows network architects to design cleaner, less cluttered deployments. For example, integrating one TOUGHSwitch PoE PRO can eliminate the need for the following:

  • 8 PoE adapters
  • 8 power cords
  • 8 power outlets
  • 8 Ethernet patch cables

TOUGHSwitch PoE deployments increase efficiency and greatly reduce potential failure points - resulting in faster installations and less maintenance and troubleshooting.

Deployment without TOUGHSwitch
TOUGHSwitch 8-Port PoE PRO Deployment

Documentation:

Download the Ubiquiti AirGrid M Series Datasheet (PDF).

Pricing Notes:

AirGrid M Series - Small (11 x 14")
Ubiquiti AirGrid M2-HP 11 x 14"
2.4GHz CPE Technology, 16 dBi Grid Antenna, 24VDC, 600mW
#AG-HP-2G16
Get a Quote!
AirGrid M Series - Large (17 x 24")
Ubiquiti AirGrid M2-HP 17 x 24"
2.4GHz CPE Technology, 20 dBi Grid Antenna, 24VDC, 600mW
#AG-HP-2G20
Our Price: $276.00
TOUGHCable
Ubiquiti TOUGHCable Pro
Category 5e Cable, Outdoor Shielded, Gray
#TC-PRO
Our Price: $135.00
Ubiquiti TOUGHCable Carrier
Category 5e Cable, Outdoor Shielded, Gray
#TC-CARRIER
Our Price: $180.00
Ubiquiti TOUGHCable Connectors
1 Box of 100 PCs, Category 5 RJ-45 Plug, Shielded
#TC-CON
Our Price: $50.00
TOUGHSwitch PoE
Ubiquiti TOUGHSwitch PoE
5-port Gigabit switch with 24V PoE support
#TS-5-POE
Our Price: $99.00
Ubiquiti TOUGHSwitch PoE PRO
8-port Gigabit switch with 24V/48V PoE support
#TS-8-PRO
Our Price: $219.00
Ubiquiti TOUGHSwitch PoE CARRIER
16-port Gigabit switch with 24V/48V PoE support
#TS-16-CARRIER
Our Price: $499.00
