Ubiquiti UniFi Cloud Key
Hybrid Cloud Device Management


Ubiquiti UniFi Cloud Key

Ubiquiti Products
UniFi Access Points
Ubiquiti UniFi Controller Cloud Key
#UC-CK
Our Price: $79.00

Click here to jump to more pricing!

Overview:

Featuring Hybrid Cloud technology, the UniFi Cloud Key securely runs a local instance of the UniFi Controller software and features cloud Single Sign-On for remote access.

UniFi Controller with Hybrid Cloud

UniFi Cloud KeyBig things do come in small packages. We took one of our biggest ideas and engineered it to fit into a tiny form factor. Introducing the UniFi Cloud Key, a miniaturized marvel of technology. The UniFi Cloud Key is an integrated computer and software controller minus the bulk. It features a quad-core processor with 1 GB RAM, operating the latest version of the UniFi Controller with built-in hybrid cloud technology.

Breakthrough Efficiency

The UniFi Cloud Key is fully capable of configuring and managing dozens of UniFi devices in your deployment. Replacing a dedicated server or computer, the UniFi Cloud Key is an ultra-low energy solution with virtually no footprint.

Hybrid Cloud Technology

The Ubiquiti hybrid cloud configuration provides a secure, private SSO (Single Sign-On) to access all of your UniFi deployments from anywhere in the world. With the Ubiquiti hybrid cloud, a third-party hosted cloud service is not required, so all of your personal data and network information remains local and secure–the way it should be.

Incredible, Agile Scalability

Add, provision, configure, monitor, and manage all of your UniFi devices, whether in one or thousands of private networks–all from a central control plane. Easily accessible through any standard web browser, the UniFi Cloud Key is a powerful solution for managing your UniFi networks across the campus or across the globe.

Features:

Hybrid Cloud Technology

The UniFi Cloud Key combines the best of local and cloud management: local network security combined with convenient remote access.

Hybrid Cloud Technology

Hybrid Cloud Technology

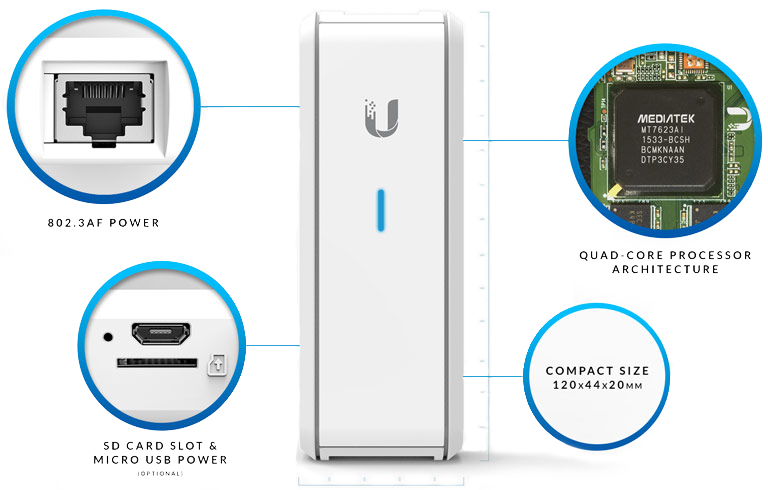

Powerful Quad-Core Architecture

The UniFi Cloud Key provides top processing power for centralized device management.

Powerful Quad-Core Architecture

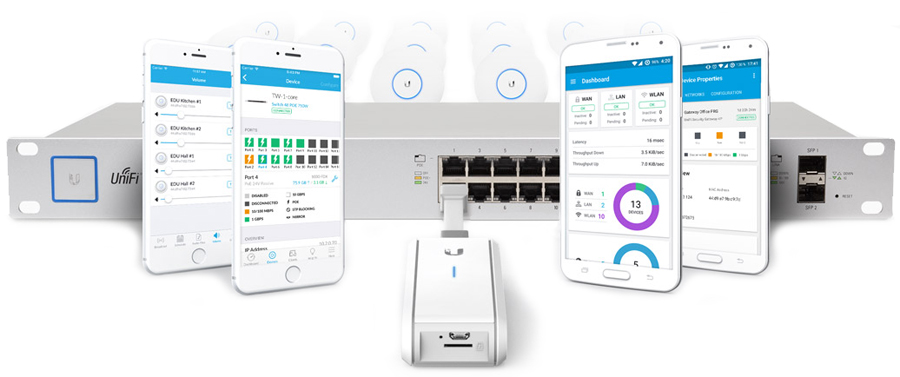

Plug and Play Installation

Instant setup: connect the UniFi Cloud Key to 802.3af PoE and run the UniFi Controller setup wizard.

Plug and Play Installation

Deployment:

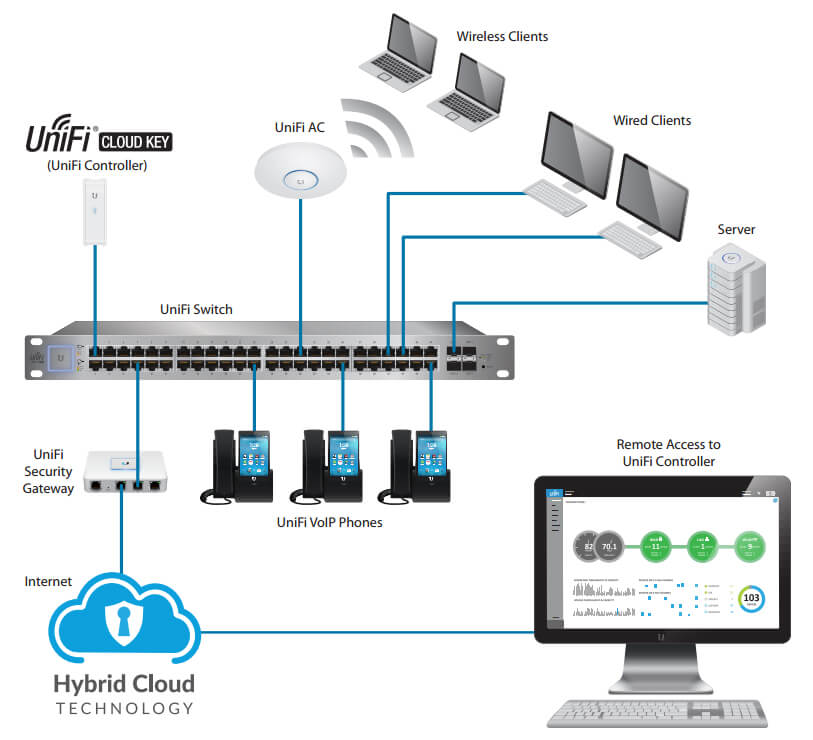

Sample Network Diagram
Sample Network Diagram

Product Views:

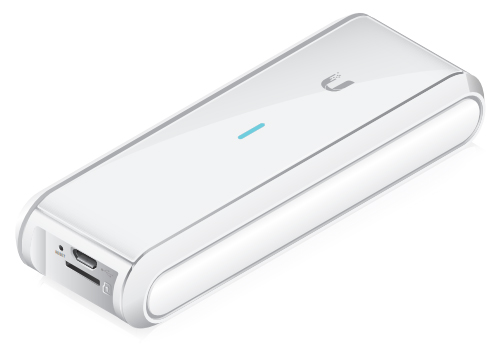

Angle View
Angle View

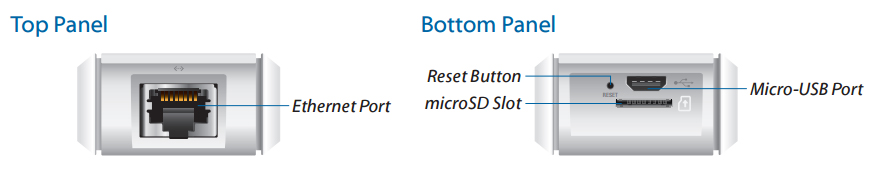

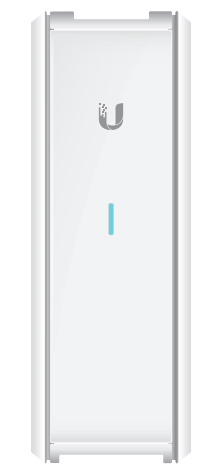

Top Front View
Top Front View

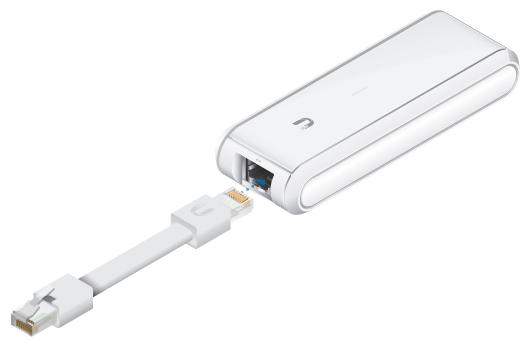

Ethernet Cable into the Ethernet port
Ethernet Cable into the Ethernet port

Specifications:

UniFi Cloud Key Specification

UniFi Cloud Key Specification
Dimensions 21.7 x 43.4 x 121.9 mm (0.85 x 1.71 x 4.80")
Weight 110 g (3.88 oz)
Processor (3) 10/100 Ethernet Ports
Memory Reset
Networking Interface 2.4 GHz
Buttons 1 dBi
Power Method PoE: 48V 802.3af or Passive PoE (Pairs 4, 5+; 7, 8 Return)
Micro-USB: 5V
Power Supply 802.3af PoE or Micro-USB 5V, Minimum 1A
Certifications CE, FCC, IC
Mounting 1-Gang Electrical Wall Box (Not Included)
Operating Temperature 0 to 40° C (32 to 104° F)
Operating Humidity 20 to 90% Noncondensing

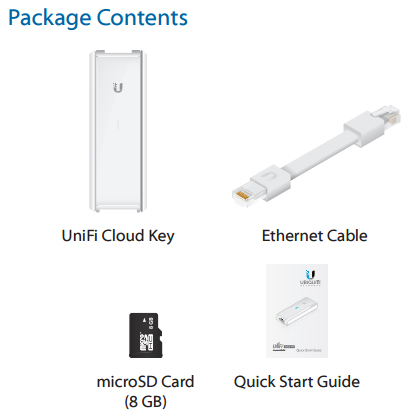

Package Contents

Software:

UniFi Controller Software

UniFi
UniFi Controller Software

Designed for convenient management, the UniFi Controller software allows admins to configure and monitor UniFi devices using a graphical user interface. There is no separate software, licensing, hosting, or support fee.

Multi-Site Management

A UniFi Cloud Key installed at each deployment site provides an always-on, private UniFi cloud service. Every site is accessible through its assigned secure SSO. Each UniFi Cloud Key is independent with its own network monitoring, configuration, maps, statistics, and admin accounts.

Improved User Experience

Redesigned to be more intuitive and easier to navigate, the new UI raises the bar for enterprise network management efficiency. Important network details are logically organized for a simplified, yet powerful, interface.

Network Overview

A comprehensive overview of your network health is readily available in the new dashboard. Monitor your network’s vitals and make on-the-fly adjustments as needed.

Detailed Analytics

Use the configurable reporting and analytics to manage large user populations and expedite troubleshooting.

LAN/WLAN Groups

The UniFi Controller can manage flexible configurations of large deployments. Create multiple LAN and WLAN groups and assign them to the respective UniFi devices.

Wi-Fi Management

Use the UniFi Controller to provision UniFi APs, configure wireless networks, map out networks, and quickly manage system traffic. Powerful Wi-Fi management features include:

  • RF monitoring and device mapping
  • Detailed RF performance analysis
  • Band steering support
  • Guest portal/hotspot support

Router and Switch Management

Use the UniFi Controller to provision UniFi Security Gateways and Switches. Configure a variety of features:

  • WAN/LAN/VLAN configuration
  • Operation mode (switching, mirroring, or aggregate) per port
  • PoE setting per port (device dependent)
  • Jumbo frame and flow control services
  • Monitor and analyze performance of each port

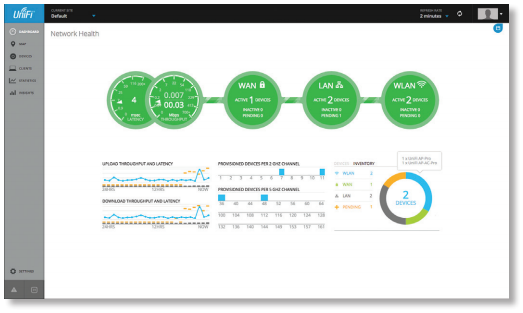

Dashboard
Dashboard
UniFi provides a visual representation of your network's status and delivers basic information about each network segment.

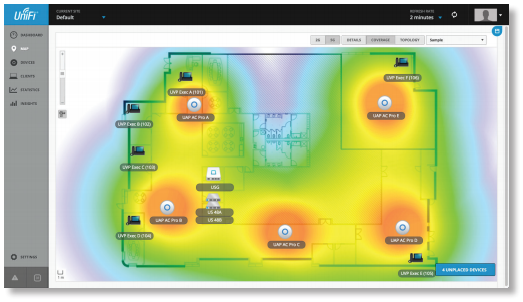

RF Map
RF Map
Monitor UniFi APs and analyze the surrounding RF environment.

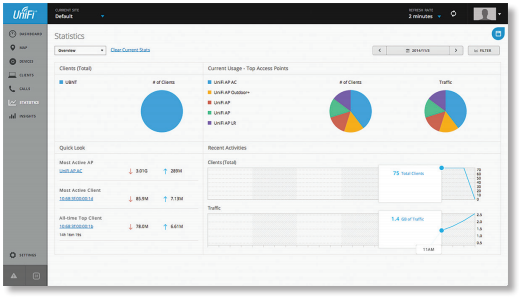

Statistics
Statistics
UniFi organizes and visualizes network traffic in clear and easy-to-read graphs.

Documentation:

Download the Ubiquiti UniFi Cloud Key Datasheet (PDF).
