Ubiquiti Horn-5-90
Isolation Antenna Horns for airFiber® LTU and airMAX



Ubiquiti Products
Horn 5 Series
5 GHZ PRISMAP ANTENNA 90
#PRISMAP-5-90
Our Price: $79.00

Click here to jump to more pricing!

Overview:

Ubiquiti Networks launches a new family of beamwidth isolation horn antennas.

Modular Design

With flexible sectorization for optional antenna beamwidths, the horn antennas are interchangeable and improve beam‑shaping for specific deployment and environment needs. Sector horn antennas are designed to increase co‑location performance without sacrificing gain.

Scalability

There are two symmetrical horn antennas:

  • Horn-5-30: 30° beamwidth
  • Horn-5-45: 45° beamwidth

These models offer breakthrough scalability options for wireless systems. Unique beam performance and great co-location characteristics allow for a higher density of sectors than traditional sector technology.

Enhanced Co-Location

There are two asymmetrical horn antennas:

  • Horn-5-60: 60° beamwidth
  • Horn-5-90: 90° beamwidth

These models have naturally attenuated side lobes and extremely low back radiation. They offer best front-to-back ratio in the industry and the lowest side lobe radiation. Asymmetrical horn antennas are ideal for cluster sector installations with high co-location requirements.

Versatility

The horn antennas can be used with the following radios:

  • airFiber LTU™ AF-LTU
  • IsoStation IS-5AC
  • IsoStation IS-M5
  • PrismStation PS-5AC

Application Example

horn 5 example



Modular Design:

The horn antennas come with precise radiation angles for specific beam shaping, ranging from 30° to 90°, making them suitable for a wide range of installations.

  • Horn designed for improved beam shaping
  • Enhanced co-location performance
  • Single button release for ease of changing antennas

Model Comparison

horn 5 comparison



Specifications:

Horn-5-90
Dimensions 152.1 x 186.8 x 113.2 mm (5.99 x 7.35 x 4.46")
Weight 920 g (32.45 oz)
Supported Frequency Range 5.15 - 5.85 GHz
Gain 13 dBi
HPOL Beamwidth 90°
VPOL Beamwidth 90°
Elevation Beamwidth 45°
Maximum VSWR 2:1
Wind Survivability 200 km/h (125 mph)
Wind Loading 46 N @ 200 km/h (10.3 lbf @ 125 mph)
Polarization Dual-Linear
Cross-Pol Isolation 17 dB

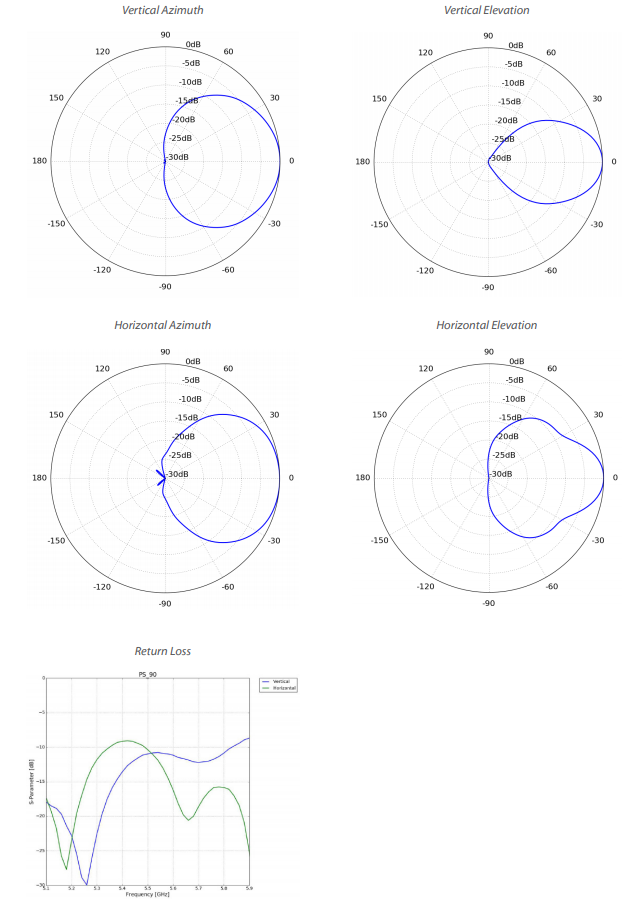

horn 5 specs



Documentation:

Download the Ubiquiti UniFi Access Point AC Series Datasheet (PDF).

Pricing Notes:

Horn 5 Series
5 GHZ PRISMAP ANTENNA 90
#PRISMAP-5-90
Our Price: $79.00
