Ubiquiti Ethernet Surge Protector
Ethernet to Ethernet Grounded ESD Protection

Ubiquiti Ethernet Surge Protector

Ubiquiti Products Ethernet-Surge-Protector
Ethernet Surge Protector
Ubiquiti Ethernet Surge Protector
#ETH-SP
Our Price: $14.00

Click here to jump to more pricing!

Overview:

The ETH-SP is engineered to protect any Power-over-Ethernet (PoE) or non-PoE device with connection speeds of up to 1 Gbps.

ESD Protection for Outdoor High-Speed Networks

Introducing the Ethernet Surge Protector, model ETH-SP, from Ubiquiti Networks. The ETH-SP is a cost-effective solution for protecting outdoor Ethernet devices from damaging electrostatic discharge and surges. Since all Ubiquiti airMAX devices already have robust ESD protection built in, adding the ETH-SP to the installation provides an additional layer of protection to the network.

The ETH-SP is engineered to protect Power-over-Ethernet (PoE) or non-PoE devices with connection speeds of up to 1 Gbps. Two passive, surge-protected RJ45 connections provide maximum equipment compatibility.

Ideal for WISP Networks

All Ubiquiti airMAX devices are equipped with ESD protection. However, to protect outdoor devices, and to meet certain local code requirements, installing the ETH-SP is essential.

For example, to guard against costly service calls, and to help your subscriber installations meet code requirements, install two ETH-SPs: one near the CPE, and the other at the entry point to the building. Damaging ESD attacks and surges will be absorbed by the ETH-SPs and safely discharged into the ground.

Features:

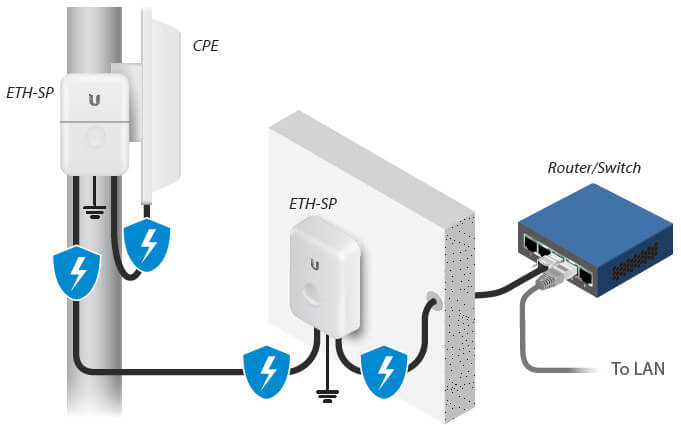

ESD Protection for Outdoor PoE Devices

Damaging electrostatic discharge attacks and surges are diverted to the ETH-SP and safely discharged into the ground, so network devices are protected.

ESD Protection for Outdoor PoE Devices

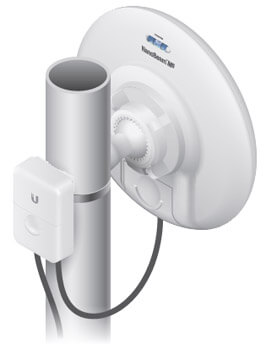

Additional ESD Protection

All Ubiquiti airMAX devices are equipped with built-in ESD protection, so the ETH-SP adds another layer of protection to your outdoor, high-speed network.

Additional ESD Protection

Plug and Play Installation

Connect the ground and Ethernet cables in between your network devices.

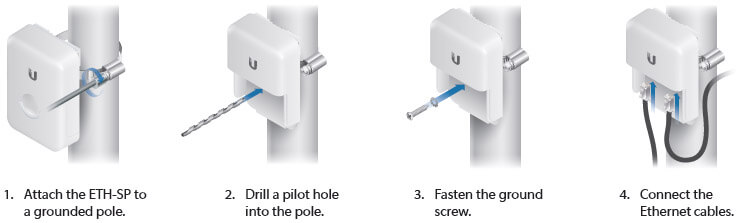

Fast Installation

The ETH-SP was designed for easy, plug and play installation:

Fast Installation

Product Views:

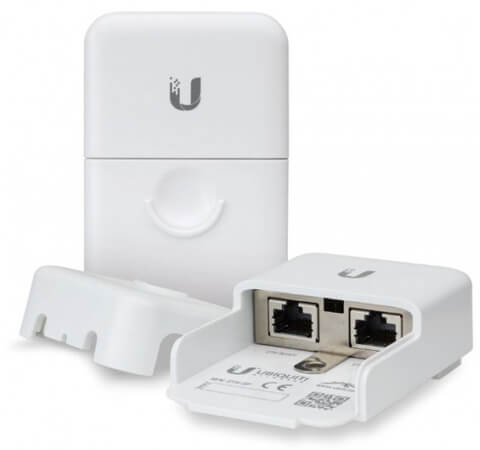

Ethernet Surge Protector

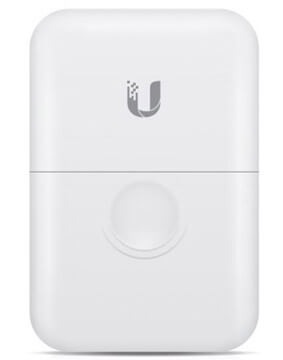

Front View
Front View

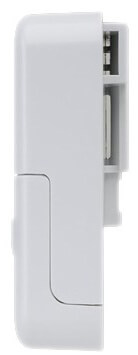

Side View
Side View
Cover View
Cover View

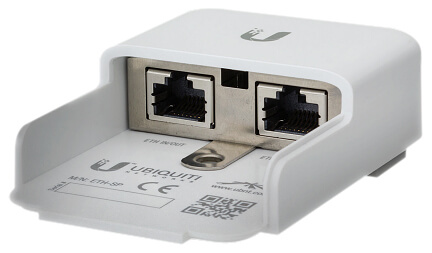

Open View
Open View

Specifications:

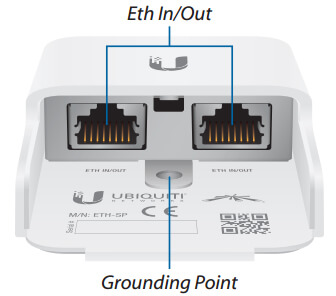

Ethernet Surge Protector Diagram
Ethernet Surge Protector Specifications
Dimensions 91 x 61 x 32.5 mm (3.58 x 2.4 x 1.28")
Weight 80 g (2.82 oz)
Interface Connections (2) RJ45 Female Connectors
ESD/EMP Protection Absorbing Transient Current with Response to Surge Voltage from 100V/s to 1kV/μs
DC Spark-Over Voltage 90V @ 100V/s
Maximum Impulse Spark-over Voltage 700V @ 1kV/μs
Discharge Current 5kA (Maximum)
0.5kA (Normal)
Maximum Insulation Resistance 1G ohm @ 50V
Maximum Capacitance 1.0 pF @ 1 MHz
Data Line Protection RJ45 10/100/1000 Ethernet
IEEE 802.3af PoE Support Yes
Shock and Vibration Certification ETSI300-019-1.4 Standard
Operating Temperature -30 to 65° C (-22 to 149° F)
Operating Humidity 10 to 90% Noncondensing

Miscellaneous:


TOUGHCable BoxTOUGHCable
Protect your networks from the most brutal environments with Ubiquiti's industrialgrade shielded ethernet cable, TOUGHCable.

  • Increase Performance - Dramatically improve your ethernet link states, speeds, and overall performance with Ubiquiti TOUGHCables.
  • Extreme Weatherproof - TOUGHCables have been built to perform even in the harshest weather and environments.
  • ESD Damage Protection - Protect your networks from devastating electrostatic discharge (ESD) attacks.
  • Extended Cable Support - TOUGHCables have been developed to have increased power handling performance for extended cable run lengths.

Bulletproof your networks

TOUGHCable is currently available in two versions: PRO Shielding Protection and CARRIER Shielding Protection.

TOUGHCable PRO is a Category 5e, outdoor, carrier-class shielded cable with an integrated ESD drain wire.

TOUGHCable PRO

TOUGHCable CARRIER is a Category 6, outdoor, carrier-class shielded cable that features an integrated ESD drain wire, anti-crosstalk divider, and secondary shielding. It is rated to provide optimal performance on Gigabit Ethernet networks.

TOUGHCable CARRIER

Additional Information:

  • 24 AWG copper conductor pairs
  • 26 AWG integrated ESD drain wire to prevent ESD attacks and damage
  • PE outdoor-rated, weatherproof jacket
  • Multi-layered shielding
  • Available in lengths of 1000 ft (304.8 m)

TOUGHCable Connectors

Specifically designed for use with Ubiquiti TOUGHCable, TOUGHCable Connectors protect against ESD attacks and Ethernet hardware damage, while allowing rapid field deployment without soldering. The standard TOUGHCable Connectors are available in a box of 100, while the TC-GND versions include ground wires and are available in a box of 20.

ESD Attacks are overwhelmingly the leading cause for device failures. The diagram below illustrates the areas vulnerable to ESD Attacks in a defenseless network. By using a grounded Ubiquiti Power over Ethernet (PoE) Adapter along with Ubiquiti TOUGHCable and TOUGHCable Connectors, you can effectively protect against ESD attacks.
TOUGHCable Connectors

Documentation:

Download the Ubiquiti Ethernet Surge Protector Datasheet (PDF).

Pricing Notes:

Ethernet Surge Protector
Ubiquiti Ethernet Surge Protector
#ETH-SP
Our Price: $14.00
TOUGHCable
Ubiquiti TOUGHCable Pro
Category 5e Cable, Outdoor Shielded, Gray
#TC-PRO
Our Price: $135.00
Ubiquiti TOUGHCable Carrier
Category 5e Cable, Outdoor Shielded, Gray
#TC-CARRIER
Our Price: $180.00
Ubiquiti TOUGHCable Connectors
1 Box of 100 PCs, Category 5 RJ-45 Plug, Shielded
#TC-CON
Our Price: $50.00
