Ubiquiti EdgeSwitch 24
24-Port Managed PoE+ Gigabit Switches with SFP


Ubiquiti EdgeSwitch 24

Ubiquiti Products
EdgeSwitch Series
Ubiquiti EdgeSwitch 24 (250W Model)
24-port Managed PoE+ Gigabit Switch with SFP, 250W Max. Power Consumption
#ES-24-250W
Our Price: $399.00
Ubiquiti EdgeSwitch 24 (500W Model)
24-port Managed PoE+ Gigabit Switch with SFP, 500W Max. Power Consumption
#ES-24-500W
Our Price: $545.00

Click here to jump to more pricing!

Overview:

EdgeMAXAdvanced Routing Technology for the Masses

Build and expand your network with Ubiquiti Networks EdgeSwitch, part of the EdgeMAX line of products. The EdgeSwitch is a fully managed, PoE+ Gigabit switch, delivering robust performance and intelligent switching for growing networks.

The EdgeSwitch offers an extensive suite of advanced Layer-2 switching features and protocols, and also provides Layer-3 routing capability.

EdgeSwitch 24

EdgeSwitch 24 (250W Model)
Model: ES-24-250W

  • (24) Gigabit RJ45 ports
  • (2) SFP ports
  • Non-blocking throughput: 26 Gbps
  • Switching capacity: 52 Gbps
  • Forwarding rate: 38.69 Mpps
  • Maximum power consumption: 250W
  • Supports POE+ IEEE 802.3at/af and 24V Passive PoE
  • Rackmountable

EdgeSwitch 24 (500W Model)
Model: ES-24-500W

  • (24) Gigabit RJ45 ports
  • (2) SFP ports
  • Non-blocking throughput: 26 Gbps
  • Switching capacity: 52 Gbps
  • Forwarding rate: 38.69 Mpps
  • Maximum power consumption: 500W
  • Supports POE+ IEEE 802.3at/af and 24V Passive PoE
  • Rackmountable

Switching Performance

The EdgeSwitch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss. The EdgeSwitch provides total, non-blocking throughput: 24-Port Models Up to 26 Gbps.

PoE+ Flexibility

The EdgeSwitch models are available with 8, 16, 24, or 48 PoE Gigabit Ethernet ports of auto-sensing IEEE 802.3af/at or configurable 24V Passive PoE to simplify your infrastructure. By default, the EdgeSwitch automatically detects 802.3af/at devices so they automatically receive PoE. For 24V Passive PoE devices, manually enable 24V passive PoE using the EdgeSwitch Configuration Interface.

Fiber Connectivity

The EdgeSwitch provides fiber connectivity options for your growing networks. The 8, 16, and 24-port models include two SFP ports, providing up to 1 Gbps uplinks.

Features:

Powerful Enterprise Switch Models

The EdgeSwitch delivers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss. Total non-blocking throughput: up to 26 Gbps for 24-port models and up to 70 Gbps for 48-port models.

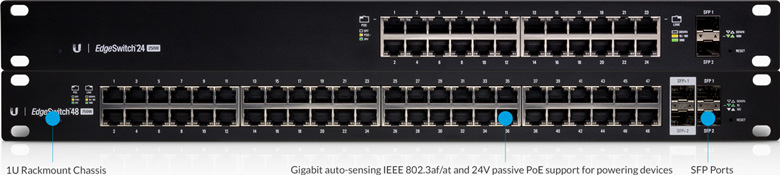

Powerful Enterprise Switch Models

Enterprise-Class Features

Enterprise-Class Features

The EdgeSwitch supports an extensive suite of advanced Layer-2 switching features and protocols, and also provides Layer-3 routing capability.

Optical Fiber Backhaul

Optical Fiber Backhaul

Two SFP ports support uplinks of up to 1 Gbps. For high-capacity uplinks, each 48-port model includes two SFP+ ports for uplinks of up to 10 Gbps.

Convenient PoE+ Support

Convenient PoE+ Support

The EdgeSwitch features auto-sensing IEEE 802.3af/at and 24V passive PoE to power multiple devices on the network.

Advanced UI

The comprehensive UI is easy to learn and allows administrators to configure and monitor features in a graphical user interface. For advanced users, a Command-Line Interface (CLI) is available through telnet and SSH.

Advanced UI

Deployment:

VLANs for Servers and Computers
VLANs for Servers and Computers

The EdgeSwitch connects to the Ubiquiti EdgeRouter PRO via an SFP uplink.

VLANs for Corporate Wireless, Guest Wireless, and VoIP
VLANs for Corporate Wireless, Guest Wireless, and VoIP

For wireless access, two Ubiquiti UniFi Access Points connect to the EdgeSwitch.

Product Views:

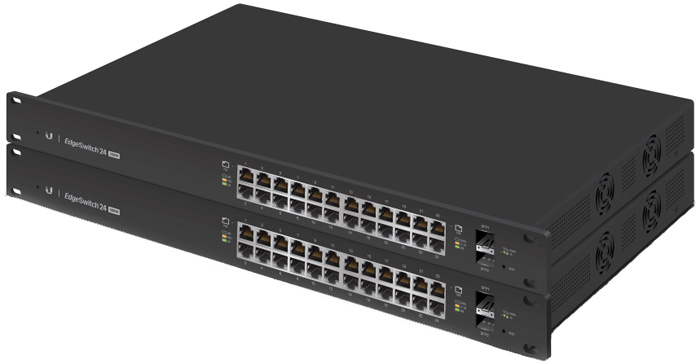

Angle View
Angle View

Front View
Front View


Rear View
Rear View

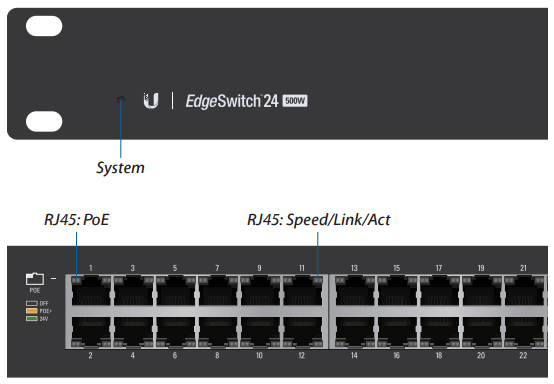

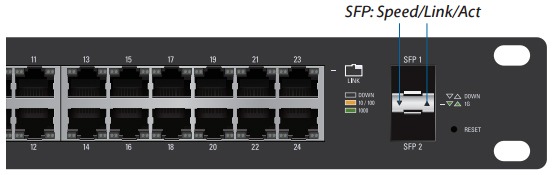

Ports/LED Zoom-In View

Ports/LED Zoom-In View
Ports/LED Zoom-In View

Specifications:

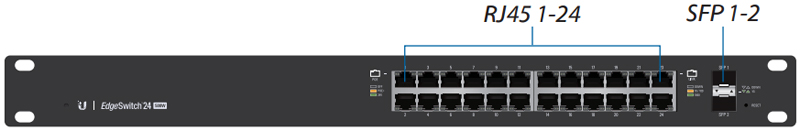

Front Panel View
Front Panel View

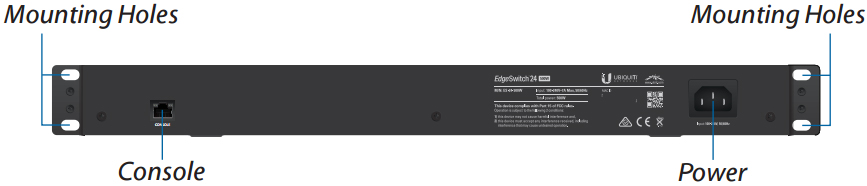

Back Panel View
Back Panel View

EdgeSwitch 24 Specification
Dimensions 485 x 43.7 x 285.4 mm (19.09 x 1.72 x 11.24")
Weight ES-24-250W: 4.7 kg (10.4 lb)
ES-24-500W: 4.8 kg (10.6 lb)
Total Non-Blocking Throughput 26 Gbps
Switching Capacity 52 Gbps
Forwarding Rate 38.69 Mpps
Max. Power Consumption ES-24-250W: 250W Includes PoE Output, 30W Excludes PoE Output
ES-24-500W: 500W Includes PoE Output, 30W Excludes PoE Output
Power Method 100-240VAC/50-60 Hz, Universal Input
Power Supply ES-24-250W: AC/DC, Internal, 250W DC
ES-24-500W: AC/DC, Internal, 500W DC
LEDs Per Port RJ45 Data Ports: PoE, Speed/Link/Activity
SFP Data Ports: Speed/Link/Activity
Networking Interfaces (24) 10/100/1000 Mbps RJ45 Ethernet Ports
(2) 1 Gbps SFP Ethernet Ports
Management Interface (1) RJ45 Serial Port, Ethernet In/Out Band
Certifications CE, FCC, IC
Rackmount Yes, 1U High
ESD/EMP Protection Air: ±24 kV, Contact: ±24 kV
Operating Temperature -5 to 40° C (23 to 104° F)
Operating Humidity 5 to 95% Noncondensing
Shock and Vibration ETSI300-019-1.4 Standard
PoE Per Port
PoE Interfaces POE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-)
24VDC Passive PoE (Pins 4, 5+; 7, 8-)
Max. PoE+ Wattage per Port by PSE 34.2W
Voltage Range 802.3at Mode 50–57V
Max. Passive PoE Wattage per Port 17W
24V Passive PoE Voltage Range 20-27V

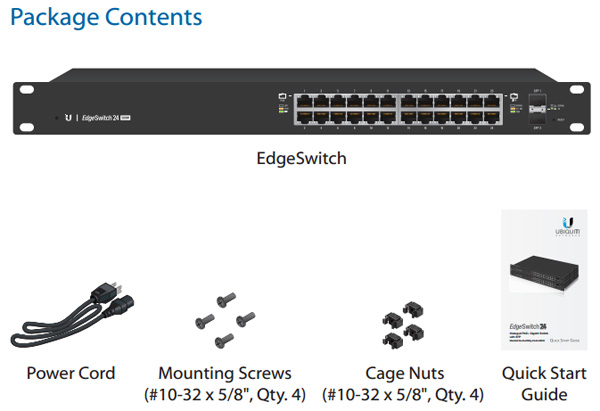

Package Contents

Software Specifications:

Software Information

Core Switching Features

  • ANSI/TIA-1057: LLDP-Media Endpoint Discovery (MED)
  • IEEE 802.1AB: Link Layer Discovery Protocol (LLDP)
  • IEEE 802.1D: Spanning Tree Compatibility
  • IEEE 802.1S: Multiple Spanning Tree Compatibility
  • IEEE 802.1W: Rapid Spanning Tree Compatibility
  • IEEE 802.1Q: Virtual LANs with Port-Based VLANs
  • IEEE 802.1p: Ethernet Priority with User Provisioning and Mapping
  • IEEE 802.1X: Port-Based Authentication with Guest VLAN Support
  • IEEE 802.3: 10BASE-T
  • IEEE 802.3u: 100BASE-T
  • IEEE 802.3ab: 1000BASE-T
  • IEEE 802.1ak: Virtual Bridged Local Area Networks - Amendment 07: Multiple Registration Protocol
  • IEEE 802.3ac: VLAN Tagging
  • IEEE 802.3ad: Link Aggregation
  • IEEE 802.3x: Flow Control
  • IEEE 802.1D-2004: Generic Attribute Registration Protocol: Clause 12 (GARP)
  • IEEE 802.1D-2004: Dynamic L2 multicast registration: Clause 10 (GMRP)
  • IEEE 802.1Q-2003: Dynamic VLAN registration: Clause 11.2 (GVRP)
  • RFC 4541: Considerations for Internet Group Management Protocol (IGMP) Snooping Switches
  • RFC 5171: Unidirectional Link Detection (UDLD) Protocol

Advanced Layer 2 Features

  • Broadcast Storm Recovery
  • Broadcast/Multicast/Unknown Unicast Storm Recovery
  • DHCP Snooping
  • IGMP Snooping Querier
  • Independent VLAN Learning (IVL) Support
  • Jumbo Ethernet Frame Support
  • Port MAC Locking
  • Port Mirroring
  • Protected Ports
  • Static MAC Filtering
  • TACACS+
  • Voice VLANs
  • Unauthenticated VLAN
  • Internal 802.1X Authentication Server

Platform Specifications

  • VLANs: 255
  • MAC Addresses: 8k
  • MSTP Instances: 4
  • LAGs: 6
  • ACLs: 100 with 10 Rules per Port
  • Traffic Classes (Queues): 8

Management

  • Web UI
  • Industry-Standard CLI
  • IPv6 Management
  • Password Management
  • Autoinstall Support for Firmware Images and Configuration Files
  • SNMP v1, v2, and v3
  • SSH 1.5 and 2.0
  • SSL 3.0 and TLS 1.0
  • Secure Copy (SCP)
  • Telnet (Multi-Session Support)

System Facilities

  • Event and Error Logging Facility
  • Run-Time and Configuration Download Capability
  • PING Utility
  • FTP/TFTP Transfers via IPv4/IPv6
  • Malicious Code Detection
  • BootP and DHCP
  • RFC 2021: Remote Network Monitoring Management Information Base Version 2
  • RFC 2030: Simple Network Time Protocol (SNTP)
  • RFC 2819: Remote Network Monitoring Management Information Base
  • RFC 2865: RADIUS Client
  • RFC 2866: RADIUS Accounting
  • RFC 2868: RADIUS Attributes for Tunnel Protocol Support
  • RFC 2869: RADIUS Extensions
  • RFC 3579: RADIUS Support for EAP
  • RFC 3580: IEEE 802.1X RADIUS Usage Guidelines
  • RFC 3164: BSD Syslog Protocol

Layer 3 Routing

  • Static Routing
  • Policy Based Routing

QoS

  • Access Control Lists (ACLs), Permit/Deny Actions for Inbound IP and Layer 2 Traffic Classification Based on:
    • Time-Based ACL
    • Source/Destination IP Address
    • TCP/UDP Source/Destination Port
    • IP Protocol Type
    • Type of Service (ToS) or Differentiated Services (DSCP) Field
    • Source/Destination MAC Address
    • EtherType
    • IEEE 802.1p User Priority
    • VLAN ID
    • RFC 1858: Security Considerations for IP Fragment Filtering
  • Optional ACL Rule Attributes
    • Assign Flow to a Specific Class of Service (CoS) Queue
    • Redirect Matching Traffic Flows
  • Differentiated Services (DiffServ)
    • Classify Traffic Based on Same Criteria as ACLs
    • Mark the IP DSCP or Precedence Header Fields, Optional
    • Police the Flow to a Specific Rate with Two-Color Aware Support
    • RFC 2474: Definition of the Differentiated Services Field (DS field) in the IPv4 and IPv6 Headers
    • RFC 2475: An Architecture for Differentiated Services
    • RFC 2597: Assured Forwarding Per-Hop Behavior (PHB) Group
    • RFC 3246: An Expedited Forwarding PHB
    • RFC 3260: New Terminology and Clarifications for DiffServ
  • Class of Service (CoS) Queue Mapping Configuration
    • AutoVoIP: Automatic CoS Settings for VoIP
    • IP DSCP-to-Queue Mapping
    • Configurable Interface Trust Mode (IEEE 802.1p, DSCP, or Untrusted)
    • Interface Egress Shaping Rate
    • Strict Priority versus Weighted Scheduling per Queue

Software:

EdgeOS Software

EdgeOS
EdgeMAX Software Platform

EdgeOS provides an intuitive, easy-to-use graphical user interface that makes router features simple to configure and monitor. It even comes with an integrated command-line interface (CLI) right in the browser, allowing access to all the advanced functions of the router.

EdgeOS Box

Packed with Features

  • IPv4/v6 addressing, DHCP client and server, VLANs Static routes, OSPF, RIP, BGP
  • Firewall (ACL-based and zone-based), NAT, QoS
  • VPN: IPsec, L2TP, OpenVPN, PPTP client and server
  • PPPoE client and server, bridging, bonding, GRE, VRRP
  • Dynamic DNS, DNS forwarding, DHCP relay

Intuitive and Powerful Graphical User InterfaceIntuitive and Powerful Graphical User Interface

The Web-based graphical user interface in the EdgeOS is developed using the latest advanced Web technologies and provides powerful functionality with high efficiency. You can reorder firewall rules using drag-and-drop, monitor interface statistics in real time, and even open a command-line interface (CLI) right in the browser.

Broad Feature SetBroad Feature Set

The EdgeOS software includes all common routing features and more. You can create VLAN, bridging, bonding, and tunnel interfaces, use OSPF, RIP, and BGP routing protocols, apply ACL-based or zone-based firewall for security, and choose from IPsec, OpenVPN, L2TP, or PPTP for your VPN needs. All features are managed with a single unified configuration that can be accessed from both the Web GUI and the CLI.

Open PlatformOpen Platform

The EdgeOS platform is not just a router operating system. It is also an open platform based on theDebian Linux distribution. You have complete system-level access including the whole filesystem hierarchy, real shell, root user, etc. Existing Debian packages can be installed on the system, and you can even build your own packages using standard tools.

Debian is a registered trademark of Software in the Public Interest, Inc.

Powerful FeaturesPowerful Features

EdgeOS™ is a sophisticated operating system loaded with robust features, including:

  • Static routes and support of routing protocols: OSPF, RIP, and BGP
  • Firewall policies and NAT rules
  • DHCP services
  • Quality of Service (QoS)
  • Network administration and monitoring tools
  • Comprehensive IPv6 support
  • Choice of configuration methods: the graphical user interface to visualize the workings of your network or the Command Line Interface (CLI) to use advanced, command-driven configuration

Configuration by CLIConfiguration by CLI

The CLI provides quick and flexible configuration by command line and features the following:

  • For power users, configuration and monitoring of all advanced features
  • Direct access to standard Linux tools and shell commands
  • CLI access through the serial console port, SSH, Telnet, and the graphical user interface
EdgeOS Specifications
Interface/Encapsulation Ethernet
802.1q VLAN
PPPoE
GRE
IP in IP
Bridging
Bonding (802.3ad)
Addressing Static IPv4/IPv6 Addressing
DHCP/DHCPv6
Routing Static Routes
OSPF/OSPFv3
RIP/RIPng
BGP (with IPv6 Support)
IGMP Proxy
Security ACL-Based Firewall
Zone-Based Firewall
Application Identification with Deep Packet Inspection (DPI)
NAT
VPN IPSec Site-to-Site and Remote Access
OpenVPN Site-to-Site and Remote Access
PPTP Remote Access
L2TP Remote Access
PPTP Client
Services DHCP/DHCPv6 Server
DHCP/DHCPv6 Relay
Dynamic DNS
DNS Forwarding
VRRP
RADIUS Client
Web Caching
PPPoE Server
QoS FIFO
Stochastic Fairness Queueing
Random Early Detection
Token Bucket Filter
Deficit Round Robin
Hierarchical Token Bucket
Ingress Policing
Management Web UI
CLI (Console, SSH, Telnet)
SNMP
NetFlow
LLDP
NTP
UBNT Discovery Protocol
Logging

Miscellaneous:


TOUGHCable BoxTOUGHCable
Protect your networks from the most brutal environments with Ubiquiti's industrialgrade shielded ethernet cable, TOUGHCable.

  • Increase Performance - Dramatically improve your ethernet link states, speeds, and overall performance with Ubiquiti TOUGHCables.
  • Extreme Weatherproof - TOUGHCables have been built to perform even in the harshest weather and environments.
  • ESD Damage Protection - Protect your networks from devastating electrostatic discharge (ESD) attacks.
  • Extended Cable Support - TOUGHCables have been developed to have increased power handling performance for extended cable run lengths.

Bulletproof your networks

TOUGHCable is currently available in two versions: PRO Shielding Protection and CARRIER Shielding Protection.

TOUGHCable PRO is a Category 5e, outdoor, carrier-class shielded cable with an integrated ESD drain wire.

TOUGHCable PRO

TOUGHCable CARRIER is a Category 6, outdoor, carrier-class shielded cable that features an integrated ESD drain wire, anti-crosstalk divider, and secondary shielding. It is rated to provide optimal performance on Gigabit Ethernet networks.

TOUGHCable CARRIER

Additional Information:

  • 24 AWG copper conductor pairs
  • 26 AWG integrated ESD drain wire to prevent ESD attacks and damage
  • PE outdoor-rated, weatherproof jacket
  • Multi-layered shielding
  • Available in lengths of 1000 ft (304.8 m)

TOUGHCable Connectors

Specifically designed for use with Ubiquiti TOUGHCables and available in 100 pc. bags, TOUGHCable Connectors protect against ESD attacks and Ethernet hardware damage while allowing rapid field deployment without soldering.

ESD attacks are the leading cause for device failures. The diagram below illustrates the areas vulnerable to ESD attacks in a network. By using a grounded Ubiquiti Power over Ethernet (PoE) Adapter along with Ubiquiti TOUGHCable and TOUGHCable Connectors, you can effectively protect against ESD attacks.
TOUGHCable Connectors

Documentation:

Download the Ubiquiti EdgeMAX EdgeSwitch Datasheet (PDF).

Pricing Notes:

EdgeSwitch Series
Ubiquiti EdgeSwitch 24 (250W Model)
24-port Managed PoE+ Gigabit Switch with SFP, 250W Max. Power Consumption
#ES-24-250W
Our Price: $399.00
Ubiquiti EdgeSwitch 24 (500W Model)
24-port Managed PoE+ Gigabit Switch with SFP, 500W Max. Power Consumption
#ES-24-500W
Our Price: $545.00
TOUGHCable
Ubiquiti TOUGHCable Pro
Category 5e Cable, Outdoor Shielded, Gray
#TC-PRO
Our Price: $135.00
Ubiquiti TOUGHCable Carrier
Category 5e Cable, Outdoor Shielded, Gray
#TC-CARRIER
Our Price: $180.00
Ubiquiti TOUGHCable Connectors
1 Box of 100 PCs, Category 5 RJ-45 Plug, Shielded
#TC-CON
Our Price: $50.00
