Ubiquiti airFiber AF-5G30-S45
5 GHz, 30 dBi Slant 45 Antenna for airFiber

Ubiquiti airFiber AF-5G30-S45

Ubiquiti airFiber
airFiber X Antenna
airFiber 5 GHz, 30 dBi Slant 45 Antenna for airFiber
#AF-5G30-S45
Our Price: $250.00

Click here to jump to more pricing!

airFiber X AntennaOverview:

The airFiber X Antennas feature significant advances in noise isolation and beam performance to complement the airFiber X radios for carrier backhauls and Point-to-Point (PtP) bridging (airFiber X radio sold separately).

Powerful Performance

The airFiber X antenna delivers 2x2, dual-polarity performance. On the right is one example of how the airFiber X antenna with an airFiber X radio can be deployed as endpoints in a backhaul link to deliver bandwidth from a WISP network out to a neighborhood tower. From there, an airMAX Sector antenna with a Rocket radio delivers bandwidth to the WISP's customers.

Application Example
Application Example

Carrier-Class Construction

Incorporating a dish reflector design for excellent beam directivity, the airFiber X antennas feature robust mechanical design using industrial‑strength hardware for outdoor application use.

Plug and Play Integration

airFiber X antennas and airFiber X radios have been designed to seamlessly work together. Every airFiber X antenna has a built-in airFiber X radio mount, so installation requires no special tools. Snap the airFiber X radio securely into place and mount the antenna; you then have the optimal combination of airFiber X antenna and airFiber X radio for your PtP application.

Mounting the AF-5X (airFiber X radio sold separately)
Mounting the AF-5X (airFiber X radio sold separately)

Features:

Innovative Mechanical DesignInnovative Mechanical Design

  • Secure Pole-Mounting
    Maintains the position of the dish during harsh outdoor conditions.
  • Low-Profile Form Factor of the AF-5G23-S45
    Reduces wind-loading.

Weatherproof Design

  • Protective Shroud
    Protects the cables and connectors from the elements.
  • Integrated Radome of the AF-5G23-S45
    Shields the radio from the environment.

Compact Footprint for Deployment Flexibility

The compact form factor allows the airFiber X Antennas to be used in various applications, from carrier backhauls between towers to PtP bridging between buildings.

The airFiber X supports ± 45° slant polarization for improved noise immunity and Signal-to-Noise Ratio (SNR). The compact form factor of the airFiber X allows it to fit into the radio mount of Ubiquiti antennas, so installation requires no special tools.

The airFiber X antennas are purpose-built with 45° slant polarity for seamless integration with the airFiber X.

Compact Footprint for Deployment Flexibility

Avanced RF Isolation Design

The innovative industrial design improves RF isolation to significantly reduce interference and deliver superior gain for high-capacity, multipoint networks. The near-field plot of the AF-5G23-S45 is displayed in watts and uses a linear scale. The strength of the electromagnetic field is color-coded:

  • Red: Highest strength
  • Green: Medium strength
  • Indigo: Lowest strength

Avanced RF Isolation Design

airFiber X Conversion Kit

The 5 GHz RocketDish to airFiber Antenna Conversion Kit, model AF-5G-OMT-S45, converts the RocketDish RD-5G30 or RD-5G34 antenna for use with the airFiber AF-5X radio.

airFiber X Conversion Kit

Product Views:

AF-5G30-S45

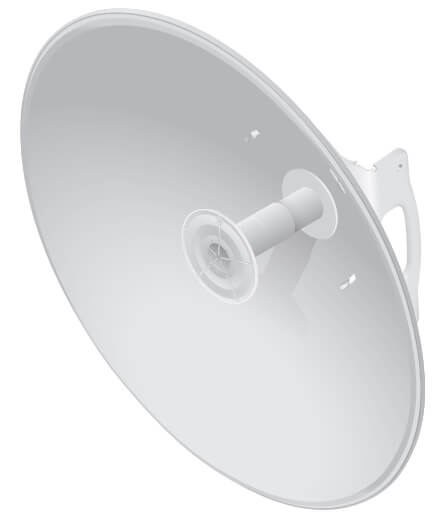

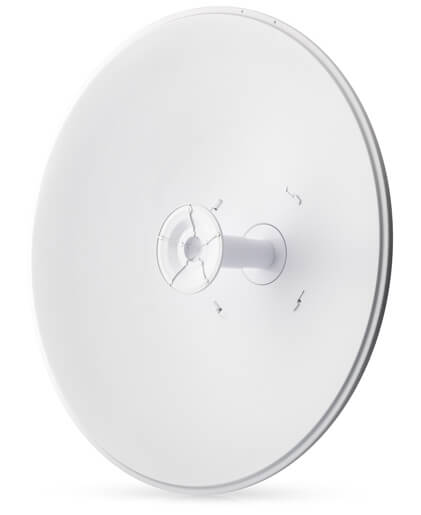

Angle View

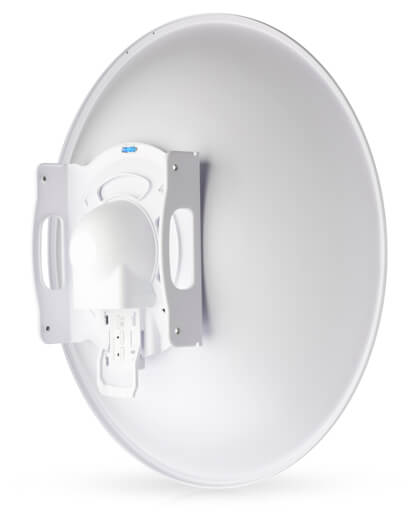

Rear View

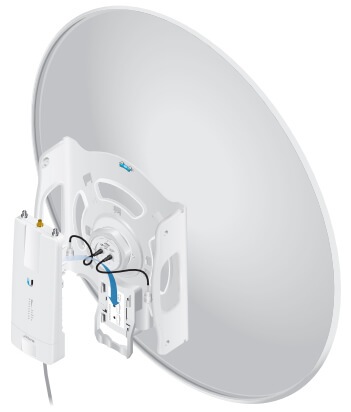

Rear View with airFiber X radio (airFiber X radio sold separately)
Rear View with airFiber X radio
(airFiber X radio sold separately)

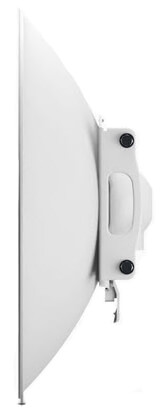

Side View
Side View

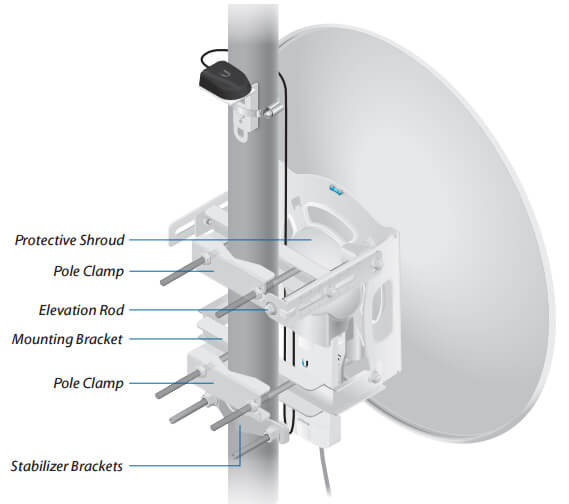

Fully Assembled Back View
Fully Assembled Back View

Specifications:


airFiber AF-5G30-S45 Specification
Dimensions* ø 650 x 386 mm (ø 25.59 x 15.20")
Weight** 7.4 kg (16.31 lb)
Frequency Range 5.1 - 5.9 GHz
Gain 30 dBi
+ 45° Beamwidth 5.8° (3 dB)
- 45° Beamwidth 5.8° (3 dB)
F/B Ratio 30 dB
Max. VSWR 1.6:1
Wind Loading 790 N @ 200 km/h (178 lbf @ 125 mph)
Wind Survivability 200 km/h (125 mph)
Polarization Dual-Linear
Cross-pol Isolation 35 dB Min.
ETSI Specification EN 302 326 DN2
Mounting Universal Pole Mount, airFiber X Radio Bracket, and Weatherproof RF Connectors Included

* Dimensions exclude pole mount and airFiber X radio (airFiber X radio sold separately)
** Weight includes pole mount and excludes airFiber X radio (airFiber X radio sold separately)

Package Contents

Antenna Information:


AF-5G30-S45

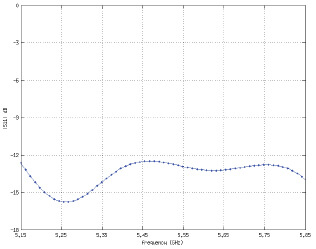

Return Loss
AF-5G30-S45 Return Loss
Azimuth, 5500 MHz
AF-5G30-S45 Azimuth, 5500 MHz

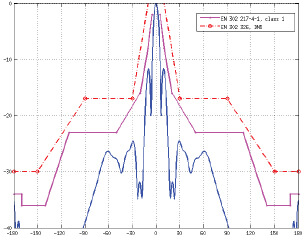

Azimuth Specs
AF-5G30-S45 Azimuth Specs
Elevation, 5500 MHz
AF-5G30-S45 Elevation, 5500 MHz

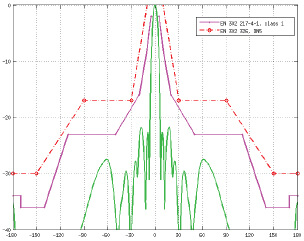

Elevation Specs
AF-5G30-S45 Elevation Specs

Accessories:

ISO-BEAM-620IsoBeam
(Model: ISO-BEAM-620)

The IsoBeam is an isolator radome that is available as an optional accessory for the AF-5G30-S45 and other dish antenna models:

  • RocketDish RD-5G30-LW
  • PowerBeam PBE-5AC-620
  • PowerBeam PBE-M5-620

The innovative RF-choke perimeter of the IsoBeam delivers superior noise immunity in co-location deployments; its perimeter corrugation provides enhanced RF shielding. Compare the two near-field plots below, and note the breakthrough isolation performance of the IsoBeam.

Both near-field plots are displayed in watts and use a linear scale. The strength of the electromagnetic field is color-coded:

  • Red: Highest strength
  • Green: Medium strength
  • Indigo: Lowest strength

ISO-BEAM-620 strength of the electromagnetic field is color-coded

Precision Alignment Kit


Precision Alignment Kit

The Precision Alignment Kit is available as an optional accessory for the AF-5G30-S45. It features 15° of azimuth adjustment and 15° of elevation adjustment to enable extremely accurate aiming for optimal PtP link performance.

The Precision Alignment Kit is also compatible with other dish antenna models:

  • RocketDish RD-5G30-LW
  • PowerBeam PBE-5AC-620
  • PowerBeam PBE-M5-620

Software:

airOS on MonitorairOS
Loaded with Powerful Features

airOS F is an intuitive, versatile, highly developed Ubiquiti firmware technology that resides on airFiber. It is exceptionally intuitive and was designed to require no training to operate. Behind the user interface is a powerful firmware architecture which enables hi-performance network backhauls.

airOS F Tools

  • Speed Test
  • Antenna Alignment
  • Device Discovery
  • Site Survey
  • Ping
  • Traceroute

airOS F Integrated Technologies

airFiber's purpose-built hardware provides superior wireless performance, higher capacity, and lower latency. Unlike standard WiFi protocols, Ubiquiti airFiber's Hybrid Division Duplex (HDD) provides the best of both worlds — latency performance of Frequency Division Duplex (FDD) with the spectral efficiency of Time Division Duplex (TDD).

Wireless Modes
  • Master
  • Slave

Wireless Network Configuration

  • Transmit Frequency
  • Receive Frequency
  • Output Power
  • Modulation Rate
  • Automatic Modulation Rate Adaptation
  • Duplex: Half or Full
  • High/Low RX Gain
  • Wireless Security: AES-128

Network Mode

  • Transparent Layer 2 Bridge

Network Configuration

  • In-Band Management
  • Management VLAN
Management
  • Automatic check for airOS F Updates
  • Configuration Test Mode
  • Firmware Recovery via TFTP
  • Reset to Factory Defaults
  • Configuration Management: Backup/Restore Device Configuration
  • Administrator/Read-Only Access
  • WEB/SSH/Telnet Access
  • Dynamic DNS
  • NTP Client
  • Ping Watchdog
  • SNMP v1 Support
  • System Log: Local/Remote
  • Full Statistical Performance Reporting

Tools

  • Speed Test
  • Antenna Alignment
  • Device Discovery
  • Ping
  • Traceroute

Documentation:

Download the Ubiquiti airFiber X Antennas Datasheet (PDF).
